Description

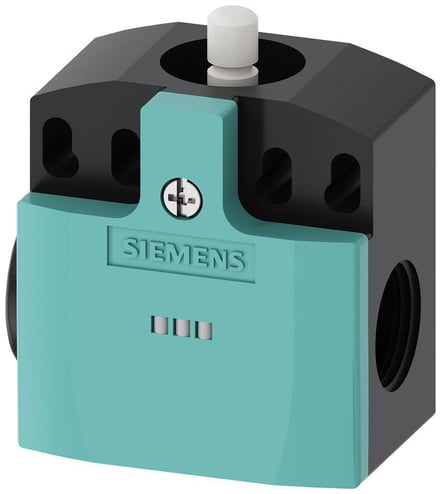

Siemens Limit Switch, Mechanical Position, Series: 3SE5, 24 VDC, 6 A, 50/60 Hz, 1NO-2NC, Quick, Round Plunger, (2) M20 x 1.5, IP66/IP67, Threaded Mount, 50 mm W x 33 mm D, 15000000 cycles Operating Cycles, -25 to 60 deg C Operating, Plastic
The innovative SIRIUS 3SE5 position switches are modern in design, compact, modular and simple to connect. They save time and increase flexibility during installation of a whole range of switch variants. In principle it is possible to combine any enclosure with any operating mechanism, paying due consideration to the EN 50041 and EN 50047 standards where necessary.
Features
- All actuators can be turned around the axis in increments of 22.5 deg
- Rounded and roller plungers according to EN 50041 with 3 mm over travel (total travel 9 mm) for greater tolerance when switching
- All enclosure variants have an integrated chlorinated rubber diaphragm for high functional safety in cold and aggressive environments
- Elements with 1NO+2NC slow action contacts with make-before-break and 2NO+1NC
- XL metal enclosures for accommodating two 2 or 3-pole contact blocks
- Mechanical positions of moving machine parts are converted into electrical signals
- 15000000 typical/100000 electrical endurance/10000000 electrical endurance with contactor switching cycles
Specifications
GTIN: 00754554955865
UNSPSC: 39121521
Country of Origin: Germany
| Type | Mechanical Position |
|---|---|
| Operating Temperature | -25 to 60 deg C |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 24 V DC |
| Size | 50 mm W x 33 mm D |
| Width | 3.4 in |
| Enclosure Type | IP66/IP67 |
| Mounting Type | Threaded |
| Series | 3SE5 |
| Connection Type | (2) M20 x 1.5 |
| Action | Quick |
| Material | Plastic |
| Amperage Rating | 6 A |
| Contact Configuration | 1NO-2NC |
| Operating Cycles | 15000000 cycles |
| BABA Compliant | No |
| Sold as | EACH |
