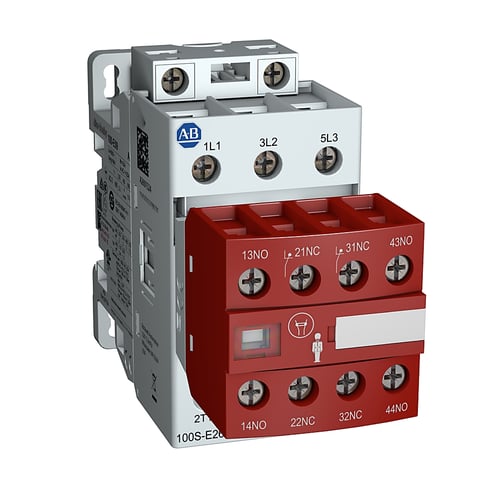

A-B 100S-E38KN13C IEC 38 A Safety C
A-B 100S-E38KN13C IEC 38 A Safety C
MPN 100S-E38KN13C
ASPN AB100SE38KN13C
UPC 191326907828
Description
Features
- Standard coil, pick-up50VA/50 W @ 250...500V AC/DC
- Operating time, closing delay40 to 95
- Standard coil, hold-in2.2VA/2 W @ 250...500V AC/DC
- Rating for switching AC motors3-poles: 10 Hp @ 200V, AC-2, AC-3 (60 Hz)
- Optional overload relaysElectronic
Specifications
GTIN: 00191326907828
UNSPSC: 39121529
| Safety Data Sheet (SDS) Flag | N |
|---|---|
| Maximum Load Current | 38 A |
| Number of Poles | 3 |
| Enclosure Type | Open |
| Phase | 3-Phase |
| Bulletin | 100S |
| BABA Compliant | No |
| Height (Imperial) | 1.8504 |
| Height UOM (Imperial) | IN |
| Length UOM (Imperial) | IN |
| Width (Imperial) | 3.4252 |
| Width UOM (Imperial) | IN |
| Length (Imperial) | 4.7638 |
| Coil Voltage | 250-500V AC/DC |
| Invoice Description - English | IEC 38 A Safety Contactor |
| Contact Configuration | 0NO 0NC Low Power: 1NO 3NC |
| Contact Rating | 38 A |
