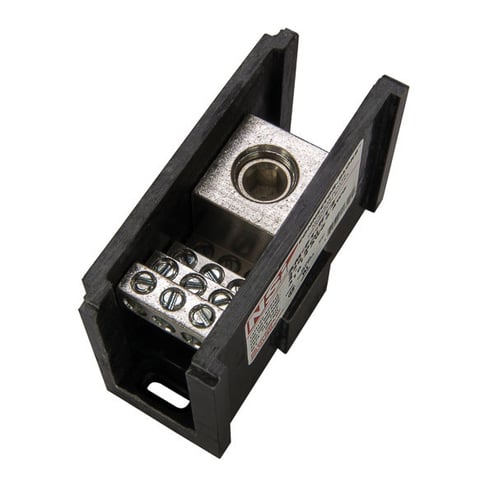

NSI Connector Bloks™ AM-P1-H12 Single Primary Power Distribution Block, 600 VAC, 310 A, 1 Poles, 6 AWG to 350 kcmil Wire, Aluminum
NSI Connector Bloks™ AM-P1-H12 Single Primary Power Distribution Block, 600 VAC, 310 A, 1 Poles, 6 AWG to 350 kcmil Wire, Aluminum
MPN AM-P1-H12
ASPN TORKAMP1H12
UPC 662381165404
Description
Features
- 2 mounting holes
- Power distribution blocks are made of high strength, high conductivity material
- Mounted in a high strength glass filled polyester base
- Each block can stand alone or combine with other blocks to form a multi-block set
- 13 terminals
- Glass filled polyester base
- Medium size
- (1) 6 AWG to 350 kcmil line, (12) 14 to 4 AWG load
Specifications
GTIN: 00662381165404
UNSPSC: 39121410
Country of Origin: United States of America (the)
| Type | Single Primary |
|---|---|
| Wire Size | 6 AWG to 350 kcmil |
| Number of Poles | 1 |
| Color | Black |
| Voltage Rating | 600 VAC |
| Weight | 49 lbs |
| Dimensions | 4 in L x 1.71 in W x 2.62 in H |
| Secondary Connection/Pole | 12 |
| Material | Aluminum |
| Amperage Rating | 310 A |
| Primary Connections/Pole | 1 |
| BABA Compliant | No |
| Sold as | EACH |
