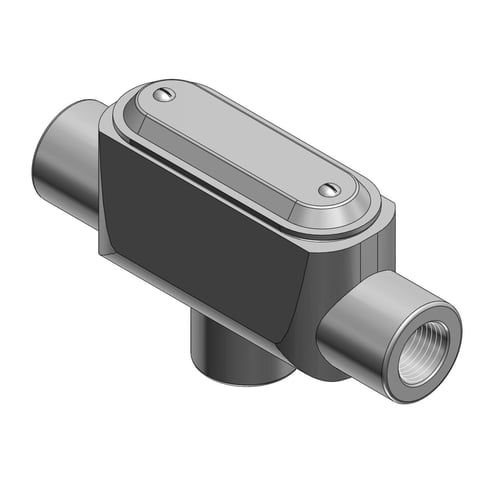

T&B® BlueKote® TB37CG-TB Type TB Pre-Assembled Conduit Body With Cover, Gasket, 1 in Hub, Form 7 Form, 16.9 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated
T&B® BlueKote® TB37CG-TB Type TB Pre-Assembled Conduit Body With Cover, Gasket, 1 in Hub, Form 7 Form, 16.9 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated
MPN TB37CG-TB
ASPN TNBTB37CGTB
UPC 786210917009
Description
Features
- Bluekote® Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- T and b form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton® form 7 bodies and covers
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
Specifications
GTIN: 00786210917009
UNSPSC: 39131708
Discontinued Manufacturer Part Number: 7TAD013240R0076
Country of Origin: China
| Type | Type TB Pre-Assembled |
|---|---|
| Color | Gray |
| Weight | 0.2 lbs |
| Form | Form 7 |
| Dimensions | 7.38 in L x 2.5 in W x 2.31 in H |
| Number of Hubs | 3 |
| Connection Type | Tapered NPT |
| Hub Size | 1 in |
| Material | Iron |
| Volume | 19 cubic inches |
| Finish | Epoxy Powder Coated/Zinc Plated |
| Capacity | 16.9 cu-in |
| BABA Compliant | No |
| Sold as | EACH |
