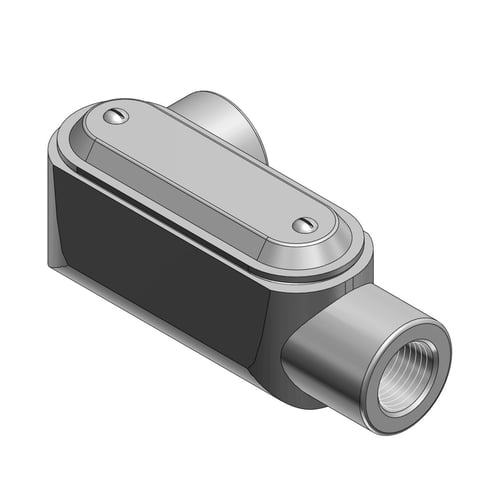

T&B Rigid Fittings LL47CG-TB Pre-Assembled Conduit Body, 1-1/4 in Hub, Form 7 Form, Gray Iron, Epoxy Powder Coated/Zinc Plated
T&B Rigid Fittings LL47CG-TB Pre-Assembled Conduit Body, 1-1/4 in Hub, Form 7 Form, Gray Iron, Epoxy Powder Coated/Zinc Plated
MPN LL47CG-TB
ASPN TNBLL47CGTB
UPC 786210916880
Description
Features
- BlueKote PTFE based internal finish provides a slick, easy-glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple-layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- T&B form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton's form 7 bodies and covers
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
Specifications
GTIN: 00786210916880
UNSPSC: 39131708
Country of Origin: China
| Type | Pre-Assembled |
|---|---|
| Weight | 1.2 lbs |
| Form | Form 7 |
| Hub Size | 1-1/4 in |
| Material | Gray Iron |
| Finish | Epoxy Powder Coated/Zinc Plated |
| BABA Compliant | No |
| Sold as | EACH |
