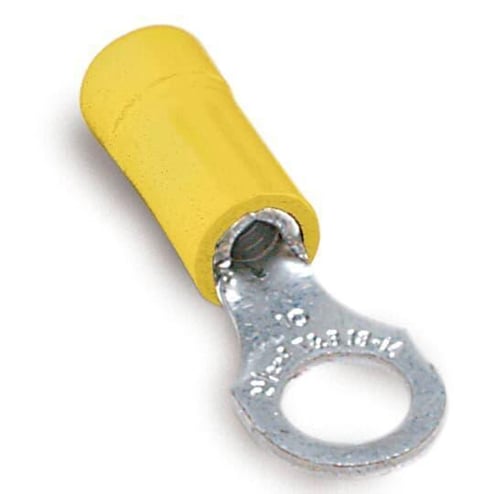

Sta-Kon® 10RC-14CP RC Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.16 in L, Brazed Seam Barrel, Copper, Yellow
Sta-Kon® 10RC-14CP RC Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.16 in L, Brazed Seam Barrel, Copper, Yellow
MPN 10RC-14CP
ASPN TNB10RC14CP
UPC 786210899015
Description
Features
- Terminals are Self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire flex point
- Brazed seam barrel that is serrated to obtain high pullout value
- Made of copper and has electro-tin plating for corrosion-resistance
- 20 pieces/pack
Specifications
GTIN: 00786210899015
UNSPSC: 39121432
Discontinued Manufacturer Part Number: 7TAI029470R0001
Country of Origin: United States of America (the)
| Type | Insulated |
|---|---|
| Color | Yellow |
| Tongue Type | Ring |
| Barrel Type | Brazed Seam |
| Voltage Rating | 600 VAC |
| Weight | 11.6 lbs |
| Specifications | 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation |
| Stud Size | 1/4 in |
| Conductor Size | 12 to 10 AWG |
| Tongue Size | 0.5 in W x 0.04 in THK |
| Length | 1.16 in |
| Series | RC Series |
| Material | Copper |
| Finish | Tin Coated |
| Temperature Rating | 105 deg C |
| BABA Compliant | No |
