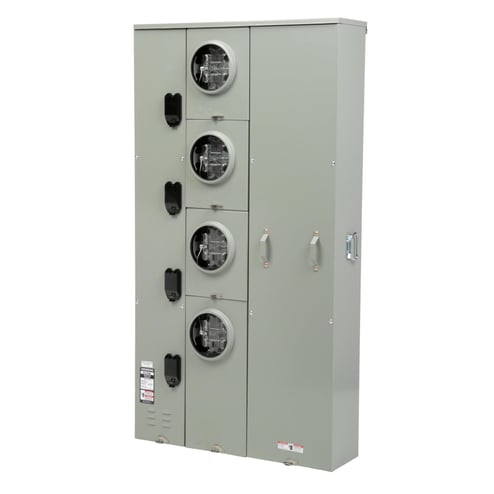

Siemens UNI-PAK WPL4412RJ 8-Cutout 3-Wire Insulated Low Voltage Meter Stack With Lever Bypass, 225 A Self-Contained Socket, Bottom/Top Feed, 120 VAC, 400 A Bus


Description

Siemens UNI-PAK Meter Stack, 8-Cutout 3-Wire Insulated Low Voltage, Self-Contained Socket, Bottom/Top Feed, 120 VAC, 400 A Bus, 225 A Socket, 4 Meter Sockets, 1 ph, Ringless Socket Cover Style, 5 Socket Jaws, QP/MP-T/QPH/HQP/MP-HT/MP-MT/QS/QSH/QSHH/HQS/HQSH Breaker, Surface Mounting, 63.5 in H x 36.38 in W x 10.5 in D Dimensions

Siemens Uni-PAK metering offers maximum flexibility and ease of installation to meet the service requirements of multiple position metering projects. The outdoor/indoor devices are available in two through six gang set-ups which consist of a pull section with main lugs or stud terminations and 4/5 jaw meter sockets with tenant circuit breaker provisions.

Features

  • Side mounted handles to help in lifting
  • Light and compact design
  • Individual split covers
  • Completely self-contained meter centers
  • Barriered, sealable compartment for unmetered current carrying parts
  • Bottom and rear branch wiring exits
  • ANSI 61 light gray electro-deposited paint on G90 galvanized steel

Specifications

GTIN: 00040892874051

UNSPSC: 39121102

Country of Origin: United States of America (the)

Type
8-Cutout 3-Wire Insulated Low Voltage
Socket Type
Self-Contained
Socket Jaws
5
Voltage Rating
120 V AC
Feed Type
Bottom/Top
Breaker Type
QP/MP-T/QPH/HQP/MP-HT/MP-MT/QS/QSH/QSHH/HQS/HQSH
Number of Meter Sockets
4
Dimensions
63.5 in H x 36.38 in W x 10.5 in D
Socket Amps
225 A
Mounting Type
Surface
Bus Amps
400 A
Phase
1
Socket Cover Style
Ringless
BABA Compliant
No
Sold as
EACH
