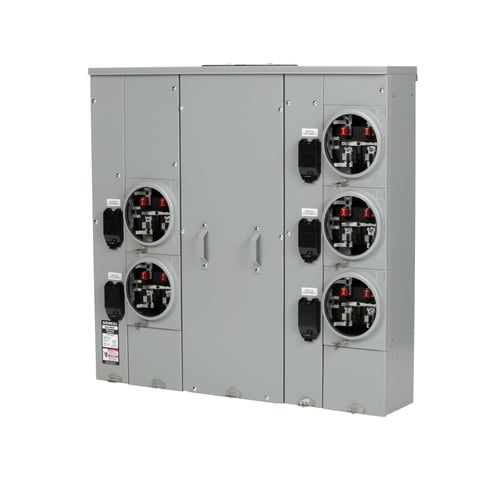

Siemens UNI-PAK WP6511RJB 17-Cutout 3-Wire Insulated Low Voltage Meter Stack With Horn Bypass, 125 A Self-Contained Socket, Bottom/Top Feed, 120 VAC, 600 A Bus
Siemens UNI-PAK WP6511RJB 17-Cutout 3-Wire Insulated Low Voltage Meter Stack With Horn Bypass, 125 A Self-Contained Socket, Bottom/Top Feed, 120 VAC, 600 A Bus
MPN WP6511RJB
ASPN SIEWP6511RJB
UPC 40892875706
Description
Features
- Individual split covers with barrel lock compatibility
- Completely self-contained meter centers
- Barriered, sealable compartment for unmetered current carrying parts
- Bottom and rear branch wiring exits
- ANSI 61 light gray electro-deposited paint on G90 galvanized steel
- Aluminum/copper lay-in lugs
Specifications
GTIN: 00040892875706
UNSPSC: 39121102
Country of Origin: United States of America (the)
| Type | 17-Cutout 3-Wire Insulated Low Voltage |
|---|---|
| Socket Type | Self-Contained |
| Wire Size | (2) 2 AWG to 600 kcmil |
| Socket Jaws | 5 |
| Voltage Rating | 120 V AC |
| Feed Type | Bottom/Top |
| Breaker Type | HQP/MP-T/MP-HT/MP-MT/QP/QPH |
| Number of Meter Sockets | 5 |
| Dimensions | 39.69 in H x 45.07 in W x 9 in D |
| Socket Amps | 125 A |
| Mounting Type | Surface |
| Bus Amps | 600 A |
| Phase | 1 |
| Socket Cover Style | Ringless |
| BABA Compliant | No |
| Sold as | EACH |
