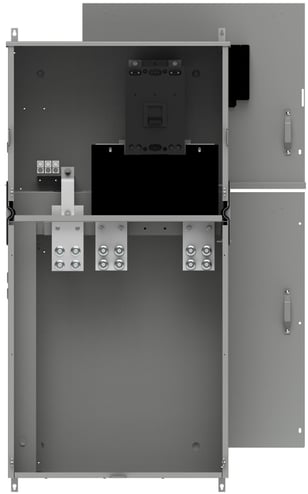

Siemens Power Mod™ WEB1600BU Type WEB 3-Wire Combination Circuit Breaker and Pull Box Module, 120/240 VAC, 600 A, 1 Phase, Bottom Feed, NEMA 3R Enclosure
Siemens Power Mod™ WEB1600BU Type WEB 3-Wire Combination Circuit Breaker and Pull Box Module, 120/240 VAC, 600 A, 1 Phase, Bottom Feed, NEMA 3R Enclosure
MPN WEB1600BU
ASPN SIEWEB1600BU
UPC 40892150513
Description
Features
- QuickSystem™ features
- Factory installed NEMA 2 studs
- Removable blank bottom endwall
- Externally accessible breaker handle with padlock capability
- Field installable shunt trips
- Large removable ground wire trough with generous space for grounding conductors
- All swing latches and rivets are stainless steel
- (3) 3/4 in cutouts
- Without lugs
Specifications
GTIN: 00040892150513
UNSPSC: 39121102
Country of Origin: United States of America (the)
| Type | Type WEB 3-Wire Combination |
|---|---|
| Voltage Rating | 120/240 V AC |
| Width | 24 in |
| Feed Type | Bottom |
| Enclosure Type | NEMA 3R |
| Short Circuit Current Rating | 100 kA |
| Dimensions | 7 in H x 28.28 in W x 13.06 in D |
| Insulation | Insulated |
| Mounting Type | Rail/Surface |
| Connection Type | Line Terminal |
| Phase | 1 |
| Material | G90 Galvanized Steel |
| Amperage Rating | 600 A |
| Volume | 1537.9 cubic inches |
| BABA Compliant | No |
| Sold as | EACH |
