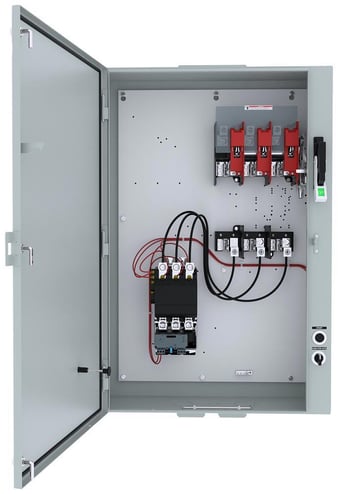

Siemens US2:87IUH6MJ Class 87 Standard Contactor Full Voltage Pump Control Panel With MCP, 24 VAC V Coil, NEMA 3/3R Enclosure


Description

Siemens Full Voltage Pump Control Panel, Standard Contactor, Series: Class 87, 600 VAC, 115 A, 50/60 Hz Frequency, 14 W Wattage, 75 hp Motor, 24 VAC Coil, Setting: 50 to 200 A, 26 to 41 ms Switch-On Delay Time/14 to 19 ms Switch-Off Delay Time Timing, Automatic/Manual Reset, 3 ph, Box Lug/Screw Terminal Connection, SZ 3-1/2 Size, Solid-State Overload Relay, 10 A at 600 VAC/5 A at 600 VDC Auxiliary, Start Pushbutton/Hand-Off-Auto Selector Switch Control, NEMA 3/3R Enclosure, Metal, 5000000 Cycles Operating Cycles, 104 deg F Operating, 24 in W x 8 in D x 41 in H Dimensions

The full voltage starter pump controllers are specifically designed for the agricultural, petrochemical and other industries requiring pump control. They are built to withstand the harsh elements of the outdoors and are well suited for the most demanding environments. Typical applications include crop irrigation, oil fields, waste water treatment and sprinklers.

Features

  • Heavy duty disconnect switch with visible blades for safety and double break switch action to reduce arcing and increase lifetime
  • Line side shield on disconnect switch to help guard personnel from contact with live parts
  • Type 3/3R enclosure fabricated with galvannealed steel versus conventional cold rolled steel for superior corrosion resistance
  • Rugged 30 mm HOA switch and start pushbutton, which are standard features, meet type 3, 4, 12 and 13 specifications and are oil and dust tight for durability
  • Half size controller
  • ESP200 overload relay
  • 125 A circuit breaker

Specifications

GTIN: 00887621404833

UNSPSC: 39121521

Country of Origin: United States of America (the)

Type
Standard Contactor
Operating Temperature
104 deg F
Control Type
Start Pushbutton/Hand-Off-Auto Selector Switch
Auxiliary Contact Rating
10 A at 600 VAC/5 A at 600 VDC
Wattage
14 W
Timing
26 to 41 ms Switch-On Delay Time/14 to 19 ms Switch-Off Delay Time
Frequency Rating
50/60 Hz
Voltage Rating
600 V AC
Size
SZ 3-1/2
Weight
0.3 lbs
Enclosure Type
NEMA 3/3R
Dimensions
24 in W x 8 in D x 41 in H
Setting
50 to 200 A
Motor Power
75 hp
Coil Voltage
24 V AC
Series
Class 87
Connection Type
Box Lug/Screw Terminal
Phase
3
Reset Type
Automatic/Manual
Material
Metal
Amperage Rating
115 A
Operating Cycles
5000000 Cycles
Overload Relay
Solid-State
BABA Compliant
No
Sold as
EACH
