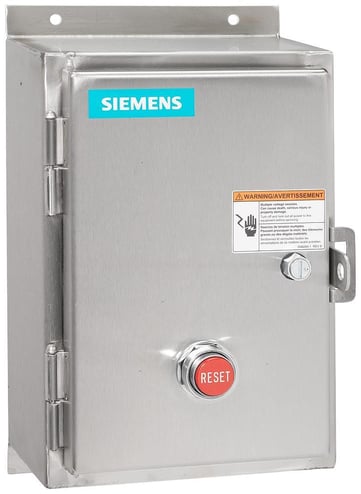

Siemens US2:14DUA32XJ Heavy Duty Full Voltage Non-Reversing Non-Combination Motor Starter, 24 VAC V Coil, 3 Poles, NEMA 4X Enclosure
Siemens US2:14DUA32XJ Heavy Duty Full Voltage Non-Reversing Non-Combination Motor Starter, 24 VAC V Coil, 3 Poles, NEMA 4X Enclosure
MPN US2:14DUA32XJ
ASPN SIEUS2:14DUA32XJ
UPC 887621284657
Description
Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Wide range of accessories
- Easy coil access
- Overload test feature
- Straight thru wiring
- Gravity drop-out
- Large silver cadmium contacts
- Suitable for 3-wire pilot control (NO auxiliary contact included)
- NEMA controller size 1
- Water/dust-tight, weatherproof and non-corrosive enclosure
- Standard width enclosure
Specifications
GTIN: 00887621284657
UNSPSC: 39121521
Country of Origin: United States of America (the)
| Type | Heavy Duty Full Voltage Non-Reversing |
|---|---|
| Operating Temperature | 104 deg F |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Wattage | 8.6 W |
| Timing | 19 to 29 ms On/10 to 24 ms Off |
| Frequency Rating | 60 Hz |
| Voltage Rating | 600 V AC |
| Width | 17.9 in |
| Full Load Current | 0.25 to 1 A |
| Enclosure Type | NEMA 4X |
| Dimensions | 8 in W x 5 in D x 13 in H |
| Motor Power | 0.17 hp at 200/208/220/230 VAC, 1/3 hp at 460/480 VAC, 1/2 hp at 575/600 VAC |
| Coil Voltage | 24 V AC |
| Connection Type | Screw Terminal |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Material | 316 Stainless Steel |
| Amperage Rating | 27 A |
| Operating Cycles | 10000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Sold as | EACH |
