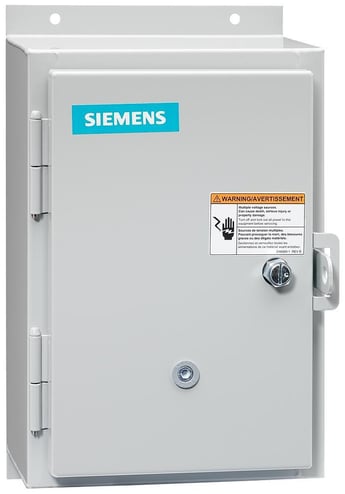

Siemens US2:14CUB820S Heavy Duty Full Voltage Non-Reversing Non-Combination Motor Starter, 24 VDC V Coil, 3 Poles, NEMA 12 Enclosure
Siemens US2:14CUB820S Heavy Duty Full Voltage Non-Reversing Non-Combination Motor Starter, 24 VDC V Coil, 3 Poles, NEMA 12 Enclosure
MPN US2:14CUB820S
ASPN SIEUS2:14CUB820S
UPC 887621283087
Description
Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Wide range of accessories
- Easy coil access
- Overload test feature
- Straight thru wiring
- Gravity drop-out
- Large silver cadmium contacts
- Field convertible to NEMA 3/3R/4
- Suitable for 3-wire pilot control (NO auxiliary contact included)
- NEMA controller size 0
- Dust/drip-proof enclosure
- Extra-wide enclosure
Specifications
GTIN: 00887621283087
UNSPSC: 39121521
Country of Origin: United States of America (the)
| Type | Heavy Duty Full Voltage Non-Reversing |
|---|---|
| Operating Temperature | 104 deg F |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Timing | 21 ms On/11 ms Off |
| Frequency Rating | 60 Hz |
| Voltage Rating | 600 V AC |
| Width | 3.5 in |
| Full Load Current | 0.75 to 3.4 A |
| Enclosure Type | NEMA 12 |
| Dimensions | 13 in W x 5 in D x 13 in H |
| Motor Power | 1/2 hp at 200/208 VAC, 3/4 hp at 220/230 VAC, 1-1/2 hp at 460/480 VAC, 2 hp at 575/600 VAC |
| Coil Voltage | 24 V DC |
| Connection Type | Screw Terminal |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Amperage Rating | 18 A |
| Operating Cycles | 10000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Sold as | EACH |
