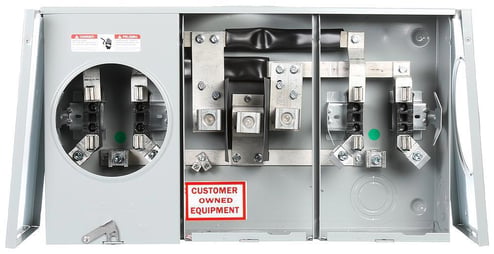

Siemens TALON UA2716-ZG Type UAS89 2-Position Multi-Position Meter Socket With Large Cover Plate and Ground Lug, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Siemens TALON UA2716-ZG Type UAS89 2-Position Multi-Position Meter Socket With Large Cover Plate and Ground Lug, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
MPN UA2716-ZG
ASPN SIEUA2716ZG
UPC 783643184688
Description
Features
- Glass filled polyester block construction
- Lay-in line side lug
- Steel construction
- Without bypass
Specifications
GTIN: 00783643184688
UNSPSC: 39121102
Country of Origin: Mexico
| Type | Type UAS8/9 2-Position |
|---|---|
| Terminal Type | Line/Load Lug |
| Wire Size | 6 AWG to 350 kcmil |
| Voltage Rating | 600 V AC |
| Feed Type | Overhead/Underground |
| Hub Type | Large Closing |
| Enclosure Type | NEMA 3R |
| Dimensions | 24 in H x 14.5 in W x 5.1 in D |
| Cover Type | Ringless |
| Mounting Type | Surface |
| Number of Jaws | 4 |
| Phase | 1 |
| Amperage Rating | 200 A |
| Volume | 0 |
| BABA Compliant | No |
| Sold as | EACH |
