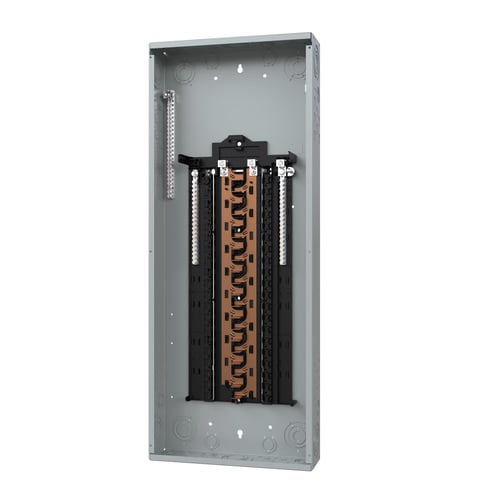

Siemens SPEEDFAX PN4040L1125C Pro PN Series 1-Phase Assembled Convertible Low Voltage Main Lug Load Center With Copper Bus Bar and Gray Combination Trim, 120240 VAC, 125 A, 100 kAIC Interrupt


Description

Siemens SPEEDFAX Main Lug Load Center, 1-Phase Assembled Convertible Low Voltage, Series: Pro PN Series, 120/240 VAC, 125 A, 100 kAIC Interrupt, 40 Circuits, 3-Wire Wiring Configuration, 40 Spaces, NEMA 1 Enclosure, 14.25 in W x 3.88 in D x 36 in H Enclosure Box, 15.5 in W x 37.13 in H

PN series load centers - a new high quality and feature rich line of load center products meets applications for virtually every need. The PN series provide maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN load centers accept the plug-on neutral breakers, patented Insta wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim, the features that we specifically engineered to decrease installation time and increase flexibility.

Features

  • Quicker breaker installation
  • Wiring made easier with the neutral lug removed on CAFCI breakers
  • Small electronic breaker footprint
  • Design allows for neutral terminal accessibility
  • Over 4 in of wire bending space
  • Neutral clip is the same as line side
  • Durable hook rail
  • 125 A load centers will accept MBK100A and MBK125A
  • Designed for use with plug-on neutral breaker

Specifications

GTIN: 00804766702945

UNSPSC: 39121101

Country of Origin: Mexico

Interrupt Rating
100 kAIC
Wiring Configuration
3-Wire
Enclosure Box Size
14.25 in W x 3.88 in D x 36 in H
Voltage Rating
120/240 V AC
Weight
5.2 lbs
Number of Spaces
40
Width
6.3 in
Enclosure Type
NEMA 1
Dimensions
15.5 in W x 37.13 in H
Series
Pro PN Series
Number of Circuits
40
Amperage Rating
125 A
BABA Compliant
No
Type
1-Phase Assembled Convertible Low Voltage
Sold as
EACH
