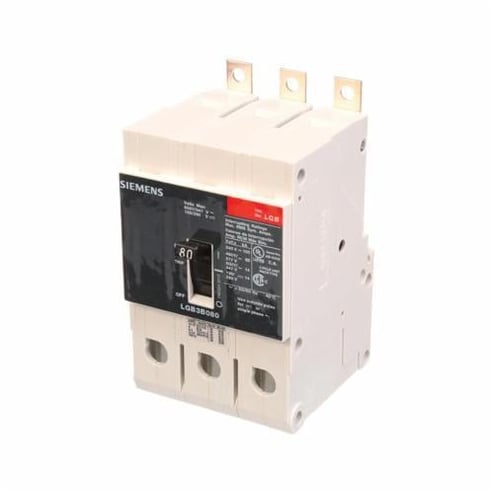

Siemens LGB3B080B Type LGB Low Voltage Molded Case Circuit Breaker, 480 VAC, 80 A, 65 kA Interrupt, 3 Poles, ThermalMagnetic Trip
Siemens LGB3B080B Type LGB Low Voltage Molded Case Circuit Breaker, 480 VAC, 80 A, 65 kA Interrupt, 3 Poles, ThermalMagnetic Trip
MPN LGB3B080B
ASPN SIELGB3B080B
UPC 887621220310
Features
- The GB circuit breaker includes the same design features as the GG except the line end of the breaker is configured for panelboard mounting applications and it is without some of the global markings
- 8 to 1/0 AWG copper, 8 to 2/0 AWG aluminum wire range
Specifications
GTIN: 00887621220310
UNSPSC: 39121601
Country of Origin: Mexico
| Number of Poles | 3 |
|---|---|
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 480 V AC |
| Phase | 3 |
| Temperature Rating | 40 deg C |
| BABA Compliant | No |
| Frame | 125 A |
| Connection Type | Load Lug/Low Tab |
| Mounting Type | Panel |
| Interrupt Rating | 65 kA |
| Wire Size | 8 to 1/0 AWG, 8 to 2/0 AWG |
| Trip Type | Thermal Magnetic |
| Type | Type LGB Low Voltage |
| Dimensions | 2.87 in L x 2.96 in W x 4.99 in H |
| Amperage Rating | 80 A |
| Sold as | EACH |
