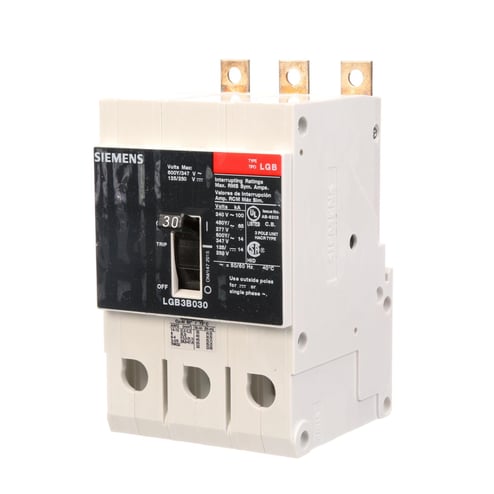

Siemens LGB3B030B Type LGB Low Voltage Molded Case Circuit Breaker, 480 VAC, 30 A, 65 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
Siemens LGB3B030B Type LGB Low Voltage Molded Case Circuit Breaker, 480 VAC, 30 A, 65 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
MPN LGB3B030B
ASPN SIELGB3B030B
UPC 887621220242
Description
Features
- The GB circuit breaker includes the same design features as the GG except the line end of the breaker is configured for panelboard mounting applications and it is without some of the global markings
- 14 to 6 AWG copper, 12 to 10 AWG aluminum wire range
Specifications
GTIN: 00887621220242
UNSPSC: 39121601
Country of Origin: Mexico
| Type | Type LGB Low Voltage |
|---|---|
| Trip Type | Thermal Magnetic |
| Wire Size | 14 to 6 AWG, 12 to 10 AWG |
| Interrupt Rating | 65 kA |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 480 V AC |
| Weight | 27 lbs |
| Dimensions | 2.87 in L x 2.96 in W x 4.99 in H |
| Mounting Type | Panel |
| Connection Type | Load Lug/Low Tab |
| Phase | 3 |
| Amperage Rating | 30 A |
| Temperature Rating | 40 deg C |
| Frame | 125 A |
| BABA Compliant | No |
| Sold as | EACH |
