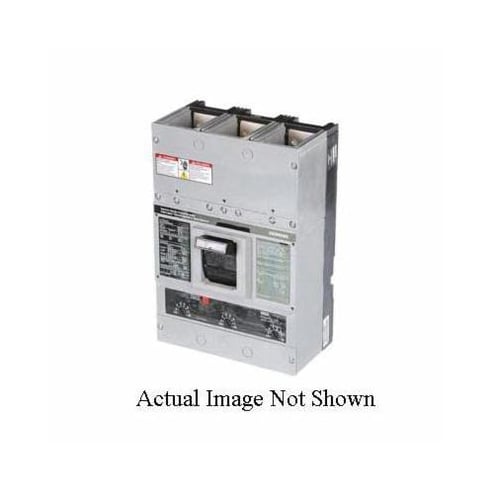

Siemens HHJXD63B400L Low Voltage Molded Case Circuit Breaker, 600 VAC, 400 A, 50 kA Interrupt, 3 Poles, ThermalMagnetic Trip


Description

Siemens Molded Case Circuit Breaker, Low Voltage, 600 VAC, 400 A, 50/60 Hz Frequency, 50 kA Interrupt, JD Frame, Thermal/Magnetic Trip, 2000 to 4000 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 3/0 AWG to 500 kcmil Cu/4/0 AWG to 500 kcmil Al Wire, 40 deg C, 7 in L x 9 in W x 15 in H Dimensions

SiemensSentronSeriesCircuit Breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens SentronSeries circuit breakers are available in nine frame sizes from 125 to 2000 A.

Features

  • Field installable external accessories
  • Series connected short circuit ratings
  • 100% rated frames
  • Many sizes for motor circuit protectors and molded case switches
  • JD frame with extra high breaking capacity
  • Extra high IC rating

Specifications

GTIN: 00783643084759

UNSPSC: 39121601

Country of Origin: Mexico

Type
Low Voltage
Trip Type
Thermal Magnetic
Wire Size
3/0 AWG to 500 kcmil Cu/4/0 AWG to 500 kcmil Al
Interrupt Rating
50 kA
Number of Poles
3
Frequency Rating
50/60 Hz
Voltage Rating
600 V AC
Dimensions
7 in L x 9 in W x 15 in H
Trip Range
2000 to 4000 A
Connection Type
Line/Load Lug
Phase
3
Amperage Rating
400 A
Temperature Rating
40 deg C
Frame
JD
BABA Compliant
No
Sold as
EACH
