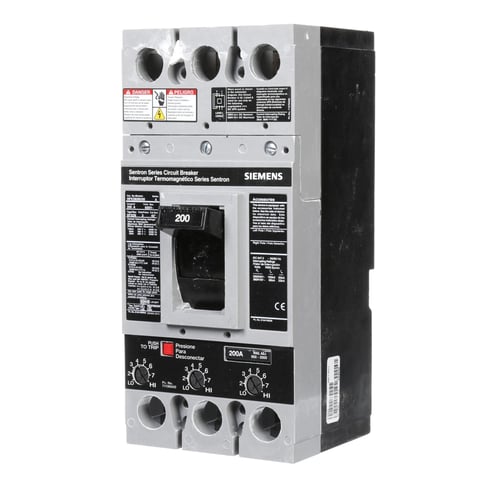

Siemens Sentron™ HFXD63B200 Type HFXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC/500 VDC, 200 A, 25 kA Interrupt, 3 Poles, Thermal/Magnetic Trip


Description

Siemens Sentron™ Molded Case Circuit Breaker, Type HFXD6 Low Voltage, 600 VAC/500 VDC, 200 A, 50/60 Hz Frequency, 25 kA Interrupt, FD Frame, Thermal/Magnetic Trip, 900 to 2000 A Trip, 3 Pole, 3 ph, Load Lug Connection, 14 to 10 AWG, 6 to 4 AWG Wire, 40 deg C, 6.9 in L x 5.6 in W x 11.1 in H Dimensions

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.

Features

  • 14 to 10 AWG copper, 6 to 4 AWG aluminum wire range
  • Varying actuator
  • Varying enclosure

Specifications

GTIN: 00783643318496

UNSPSC: 39121601

Country of Origin: Mexico

Type
Type HFXD6 Low Voltage
Trip Type
Thermal Magnetic
Wire Size
14 to 10 AWG, 6 to 4 AWG
Interrupt Rating
25 kA
Number of Poles
3
Frequency Rating
50/60 Hz
Voltage Rating
600 V AC/500 V DC
Dimensions
6.9 in L x 5.6 in W x 11.1 in H
Trip Range
900 to 2000 A
Connection Type
Load Lug
Phase
3
Amperage Rating
200 A
Temperature Rating
40 deg C
Frame
FD
BABA Compliant
No
Sold as
EACH
