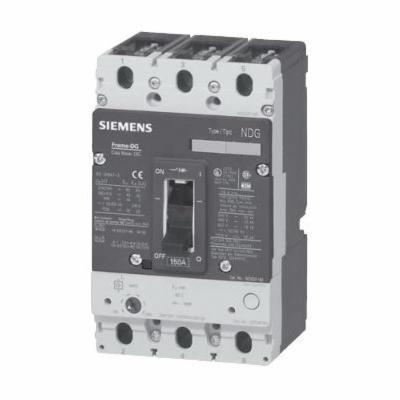

Siemens HDK3B090L VL Series Low Voltage Molded Case Circuit Breaker, 600Y347 VAC, 90 A, 18 kA Interrupt, 3 Poles, ThermalMagnetic Trip

Siemens Molded Case Circuit Breaker, Low Voltage, Series: VL Series, 600Y/347 VAC, 90 A, 50/60 Hz Frequency, 18 kA Interrupt, DG Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 6 to 3/0 AWG Al/Cu Wire, 40 deg C, 7.3 in L x 4.1 in W x 3.4 in H Dimensions

Siemens VL molded case circuit breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL circuit breakers feature N-Class (35kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL trip units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
