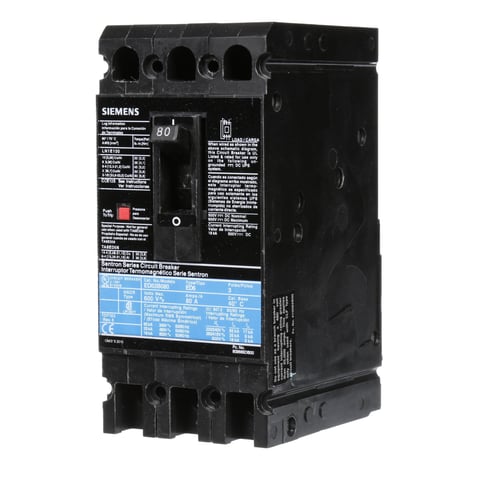

Siemens Sentron ED63B080L Type ED6 Low Voltage Molded Case Circuit Breaker, 600 VAC250 VDC, 80 A, 18 kA Interrupt, 3 Poles, ThermalMagnetic Trip


Description

Siemens Sentron Molded Case Circuit Breaker, Type ED6 Low Voltage, 600 VAC/250 VDC, 80 A, 50/60 Hz Frequency, 18 kA Interrupt, ED Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 10 to 1/0 AWG Wire, 40 deg C, 3.8 in L x 5.6 in W x 7.4 in H Dimensions

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.

Features

  • All ED frame circuit breakers may be reverse connected
  • 10 to 1/0 AWG copper aluminum wire range
  • Varying actuator
  • Varying enclosure
  • Blue label

Specifications

GTIN: 00783643236363

UNSPSC: 39121601

Country of Origin: Mexico

Type
Type ED6 Low Voltage
Trip Type
Thermal Magnetic
Wire Size
10 to 1/0 AWG
Interrupt Rating
18 kA
Number of Poles
3
Frequency Rating
50/60 Hz
Voltage Rating
600 V AC/250 V DC
Dimensions
3.8 in L x 5.6 in W x 7.4 in H
Connection Type
Line/Load Lug
Phase
3
Amperage Rating
80 A
Temperature Rating
40 deg C
Frame
ED
BABA Compliant
No
Sold as
EACH
