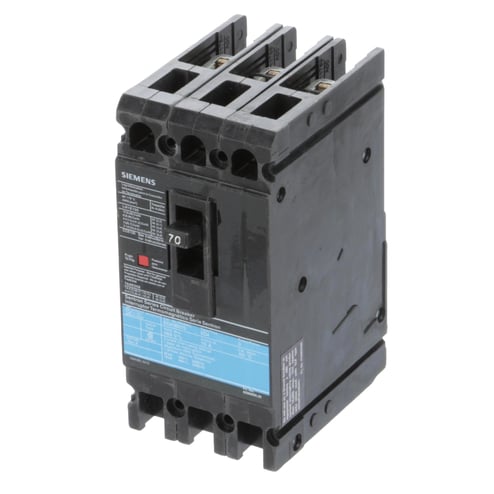

Siemens Sentron ED43B070L Type ED4 Low Voltage Molded Case Circuit Breaker, 480 VAC250 VDC, 70 A, 18 kA Interrupt, 3 Poles, ThermalMagnetic Trip


Description

Siemens Sentron Molded Case Circuit Breaker, Type ED4 Low Voltage, 480 VAC/250 VDC, 70 A, 50/60 Hz Frequency, 18 kA Interrupt, ED Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 10 to 1/0 AWG Wire, Panel Mounting, 40 deg C, 4 in L x 6 in W x 7 in H Dimensions

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.

Features

  • All ED frame circuit breakers may be reverse connected
  • 10 to 1/0 AWG copper aluminum wire range
  • Varying actuator
  • Varying enclosure
  • Blue label

Specifications

GTIN: 00783643236202

UNSPSC: 39121601

Country of Origin: Mexico

Type
Type ED4 Low Voltage
Trip Type
Thermal Magnetic
Interrupt Rating
18 kA
Number of Poles
3
Frequency Rating
50/60 Hz
Voltage Rating
480 V AC/250 V DC
Dimensions
4 in L x 6 in W x 7 in H
Connection Type
Line/Load Lug
Phase
3
Temperature Rating
40 deg C
Frame
ED
BABA Compliant
No
Amperage Rating
70 A
Mounting Type
Panel
Wire Size
10 to 1/0 AWG
Sold as
EACH
