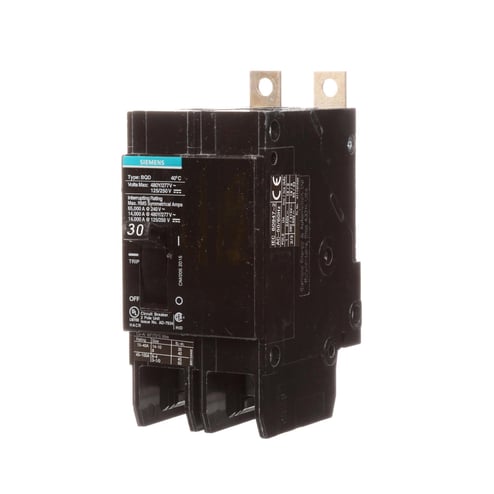

Siemens BQD230 Type BQD Molded Case Circuit Breaker, 277/480 V AC/125/250 V DC, 30 A, 14 kA Interrupt, 2 Poles, Thermal Magnetic Trip


Description

Siemens Molded Case Circuit Breaker, Type BQD, 277/480 V AC/125/250 V DC, 30 A, 50/60 Hz Frequency, 14 kA Interrupt, 100 A Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Toggle Actuator, Low Tab Connection, 14 to 6 AWG, 12 to 6 AWG Wire, Panel Mounting, 40 deg C, 19.7 in L x 8.1 in W x 5.6 in H Dimensions, Black

Siemens panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panel board busbar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as switching duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.

Features

  • 14 to 6 AWG copper, 12 to 6 AWG aluminum wire
  • Low tab connection

Specifications

GTIN: 00783643277243

UNSPSC: 39121601

Country of Origin: Mexico

Trip Type
Thermal Magnetic
Wire Size
14 to 6 AWG, 12 to 6 AWG
Interrupt Rating
14 kA
Number of Poles
2
Color
Black
Frequency Rating
50/60 Hz
Voltage Rating
277/480 V AC/125/250 V DC
Actuator Type
Toggle
Mounting Type
Panel
Connection Type
Low Tab
Phase
1
Amperage Rating
30 A
Temperature Rating
40 deg C
Frame
100 A
BABA Compliant
No
Dimensions
19.7 in L x 8.1 in W x 5.6 in H
Type
Type BQD
Sold as
EACH
