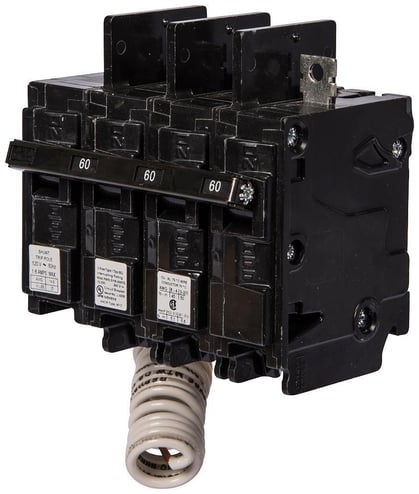

Siemens BQ3B07000S07 Molded Case Circuit Breaker, 240 VAC, 70 A, 10 kA Interrupt, 3 Poles, ShuntThermal Magnetic Trip


Description

Siemens Molded Case Circuit Breaker, 240 VAC, 70 A, 10 kA Interrupt, BQ Frame, Shunt/Thermal Magnetic Trip, 3 Pole, 3 ph, Load Lug Connection, Bolted-On Mounting, 40 deg C, 4 in L x 3 in W x 3 in H Dimensions

Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker's operating handle restores the circuit.

Features

  • Provide easy lug in/lug out connection
  • 24 VAC shunt trip

Specifications

GTIN: 00783643103825

UNSPSC: 39121601

Country of Origin: Mexico

Trip Type
Thermal Magnetic
Interrupt Rating
10 kA
Number of Poles
3
Voltage Rating
240 V AC
Weight
1.5 lbs
Dimensions
4 in L x 3 in W x 3 in H
Mounting Type
Bolted-On
Connection Type
Load Lug
Phase
3
Amperage Rating
70 A
Temperature Rating
40 deg C
Frame
BQ
BABA Compliant
No
Sold as
EACH
