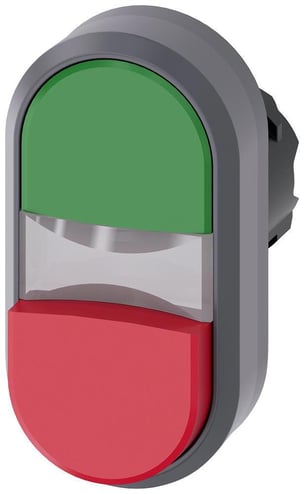

Siemens SIRIUS ACT A6X30138615 3SU10 Illuminated Round Twin Pushbutton Operator With Front Ring and Laser Labeling, 22 mm, FlatRaised Button Operator, Momentary Contact, GreenRedSand Gray
Siemens SIRIUS ACT A6X30138615 3SU10 Illuminated Round Twin Pushbutton Operator With Front Ring and Laser Labeling, 22 mm, FlatRaised Button Operator, Momentary Contact, GreenRedSand Gray
MPN A6X30138615
ASPN SIEA6X30138615
UPC 804766600371
Description
Features
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- No special tools required, simple size 2 screwdriver (cross-tip DIN ISO 87641PZD1, flat-head DIN ISO 2380-1 A/B 1x4.5) is sufficient
- Text line in upper/lower case, all lines begin with upper case letters
Specifications
GTIN: 00804766600371
UNSPSC: 39122216
Country of Origin: Germany
| Type | Illuminated Round Twin |
|---|---|
| Color | Green/Red/Sand Gray |
| Size | 22 mm |
| Weight | 1 lbs |
| Contact Mode | Momentary |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K |
| Operator Type | Raised |
| Series | 3SU10 |
| Material | Plastic |
| Finish | Matte |
| Temperature Rating | -25 to 70 deg C |
| Bezel/Housing | Metal |
| BABA Compliant | No |
| Sold as | EACH |
