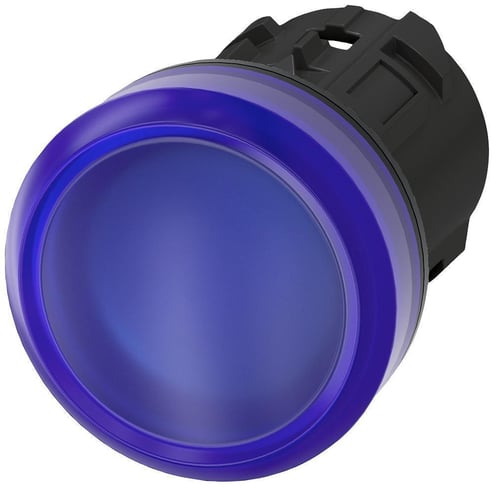

Siemens SIRIUS ACT A6X30137383 3SU10 Illuminated Round Transparent Indicator Light With Smooth Lens and Laser Labeling, 22 mm, BlackBlue


Description

Siemens SIRIUS ACT Indicator Light, Illuminated Round Transparent, Series: 3SU10, 22 mm, Bezel/Housing: Plastic, NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K, -25 to 70 deg C, Plastic, Black/Blue

SIRIUS ACT is a modular system of pushbuttons and indicator lights for front plate mounting and rear mounted electrical modules. Thanks to SIRIUS ACT with PROFINET, pushbuttons and indicator lights can be connected directly via PROFINET to the controller and HMI devices including with safety functions. Engineering and commissioning are simplified no end by the TIA portal.

Features

  • Direct connection of the enclosure to AS-interface or IO-Link
  • Direct connection in the control cabinet to PROFINET, IO-Link or AS-interface
  • Can be integrated easily via TIA portal
  • Self-holding function of the actuator when mounting
  • Twist prevention integrated into patented holder design
  • Stackable contact modules
  • Self-explanatory and fast installation using one hand
  • Components can be mounted with holder removed
  • Media resistance (chemicals) thanks to solid stainless steel and high grade plastics
  • Mechanical endurance of 10 x 10^6 operating cycles
  • Reliable, friction locked fixing with just one screw
  • Design stability according to use
  • Simple geometry for mounting holes
  • Text in upper case

Specifications

GTIN: 00804766587559

UNSPSC: 39121544

Country of Origin: China

Type
Illuminated Round Transparent
Color
Black/Blue
Size
22 mm
Weight
1 lbs
Width
16 in
Enclosure Type
NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K
Series
3SU10
Material
Plastic
Temperature Rating
-25 to 70 deg C
Bezel/Housing
Plastic
BABA Compliant
No
Sold as
EACH
