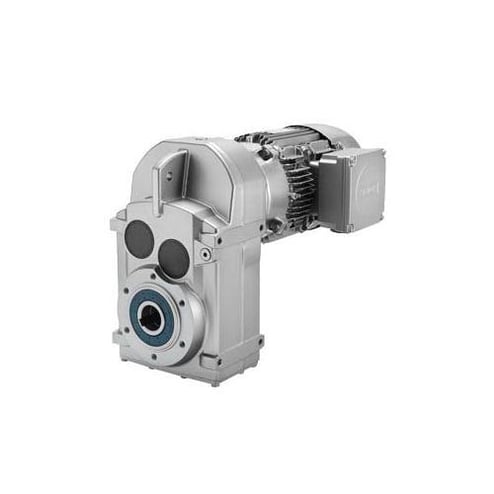

Siemens SIMOGEAR A6X30113507 2-Stage 4-Pole Geared Motor, 230/460Y VAC, 400 VAC, 2.95 hp, 36.05 Gear Ratio, 1770 rpm Rated/49.098 rpm Output Max, 1000 N-m Torque
Siemens SIMOGEAR A6X30113507 2-Stage 4-Pole Geared Motor, 230/460Y VAC, 400 VAC, 2.95 hp, 36.05 Gear Ratio, 1770 rpm Rated/49.098 rpm Output Max, 1000 N-m Torque
MPN A6X30113507
ASPN SIEA6X30113507
UPC 804766256493
Description
Features
- 230YY VAC at 60 Hz 1st voltage, 460Y VAC at 60 Hz 2nd voltage and 400 VAC supply voltage
- 7.6 A at 60 Hz 1st rated current and 3.8 A at 60 Hz 2nd rated current
Specifications
GTIN: 00804766256493
UNSPSC: 20101617
Country of Origin: Germany
| Type | 2-Stage 4-Pole |
|---|---|
| Rotation Type | Clockwise |
| Gear Type | Parallel Shaft |
| Torque Rating | 1000 N-m |
| Frequency Rating | 60 Hz |
| Voltage Rating | 230 to 460Y/400 V AC |
| Enclosure Type | IP55 |
| Dimensions | 669 mm L x 374.5 mm H |
| Shaft Diameter | 1-1/2 in |
| Maximum Speed | 1770 rpm Rated/49.098 rpm Output |
| Housing Material | Cast Iron |
| Mounting Type | Torque Arm |
| Bearing Type | Roller |
| Phase | 3 |
| Gear Ratio | 36.05 |
| Motor Type | LE100ZLSA4P Squirrel Cage Induction Motor |
| Finish | Painted |
| Temperature Rating | -15 to 40 deg C |
| Horsepower | 2.95 hp |
| Full Load Amperage | 3.8/7.6 A |
| Sold as | EACH |
