Description

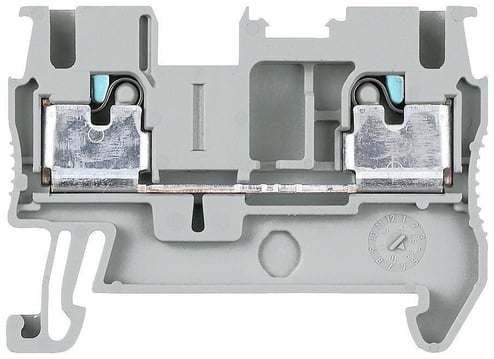

Siemens ALPHA Through Terminal Block, In-Push-Out, 800 V, 30 A, 0.14 to 4 sq-mm Wire, 10 mm Wire Strip Length, Plug-In Terminal, 5.2 mm Spacing, DIN Rail Mount, -25 to 55 deg C, Thermoplastic, Gray, 48.5 mm L x 5.2 mm W x 38.5 mm H
The iPo connection method combines the advantages of spring loaded and plug-in terminals - both rigid and flexible wires are easy to insert without the need for tools. Fast installation - with a minimum of effort and maximum contact stability. Fast removal by simply pressing the unlatching button.
Features
- IPo connection method - characterized by its simple and direct conductor connection, this series utilizes all the benefits of the 8WH system
- Easy bridging - the double bridge shaft supports the interconnection of any number of terminals using 2-pole jumpers
- The 2-pole to 50-pole jumpers enable up to 50 terminals to be connected in a single step
- Super light insertion - with an up to 50% lower insertion force, the iPo connection method permits easy and direct insertion of rigid and flexible conductors with end sleeves with a cross section of more than 0.34 sq-mm
- Pusher button function - the actuation button is used to open the spring to either release the conductor or to connect smaller cross sections from 0.14 sq-mm
- It can be operated by any tool
Specifications
GTIN: 00754554970707
UNSPSC: 39121410
Country of Origin: Germany
| Type | In-Push-Out |
|---|---|
| Terminal Type | Plug-In |
| Wire Size | 0.14 to 4 sq-mm |
| Color | Gray |
| Voltage Rating | 800 V |
| Wire Strip Length | 10 mm |
| Dimensions | 48.5 mm L x 5.2 mm W x 38.5 mm H |
| Spacing | 5.2 mm |
| Mounting Type | DIN Rail |
| Material | Thermoplastic |
| Amperage Rating | 30 A |
| Temperature Rating | -25 to 55 deg C |
| BABA Compliant | No |
| Sold as | EACH |
