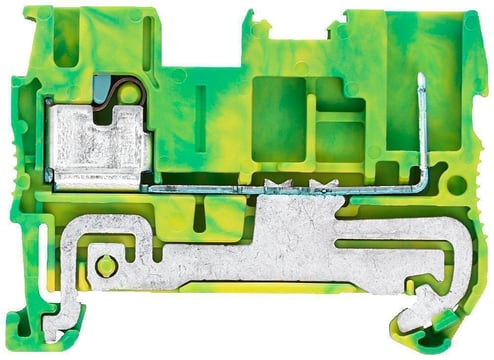

Siemens Sentron ALPHA FIX 8WH5100-3PF07 8WH5 Feed-Through PE Terminal Single Level Hybrid Terminal Block With iPo Connection, 0.25 to 2.5 sq-mm Wire, DIN Rail Mount


Description

Siemens Sentron ALPHA FIX Hybrid Terminal Block, Feed-Through PE Terminal Single Level, Series: 8WH5, 0.25 to 2.5 sq-mm Wire, 10 mm Wire Strip Length, Combination Plug-In Terminal, 2.5 sq-mm Terminal, 5.2 mm Spacing, DIN Rail Mount, 55 deg C, Thermoplastic, Green/Yellow, 48.5 mm L x 5.2 mm W x 36.5 mm H

The 8WH5 hybrid through-type terminals with iPo connection provide a modular solution for fast, flexible wiring of plants and machines. They combine the advantages of the combination terminal system with those of the iPo terminals. A label can be snapped on to the middle of each terminal at the front. Further labels can also be mounted flat on the side of the terminals.

Specifications

GTIN: 00887621419455

UNSPSC: 39121410

Country of Origin: Germany

Type
Feed-Through PE Terminal Single Level
Terminal Type
Combination Plug-In
Wire Size
0.25 to 2.5 sq-mm
Color
Green/Yellow
Wire Strip Length
10 mm
Dimensions
48.5 mm L x 5.2 mm W x 36.5 mm H
Spacing
5.2 mm
Terminal Size
2.5 sq-mm
Mounting Type
DIN Rail
Series
8WH5
Material
Thermoplastic
Temperature Rating
55 deg C
BABA Compliant
No
Sold as
EACH
