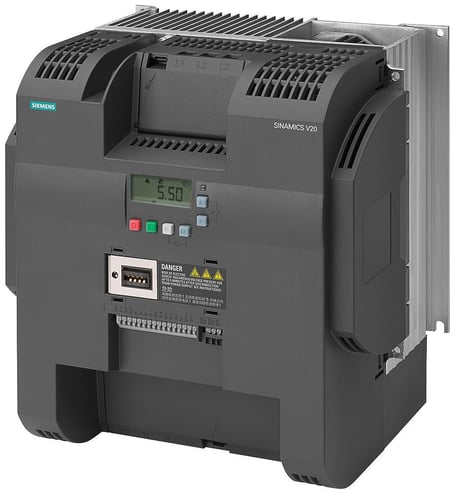

Siemens SINAMICS 6SL32105BE322CV0 V20 3-Phase Compact Low Voltage Converter With Built-In BOP, Integrated Class A Filter, USSMODBUS RTU Interface, 380 to 480 VAC, 52 A, 30 hp, 243.5 mm W x 209 mm D
Siemens SINAMICS 6SL32105BE322CV0 V20 3-Phase Compact Low Voltage Converter With Built-In BOP, Integrated Class A Filter, USSMODBUS RTU Interface, 380 to 480 VAC, 52 A, 30 hp, 243.5 mm W x 209 mm D
MPN 6SL32105BE322CV0
ASPN SIE6SL32105BE322CV0
UPC 887621902001
Description
Features
- Integrated USS and Modbus RTU interfaces
- Integrated brake choppers for 7.5 to 15 kW
- Parameter readout and cloning without power supply
- Integrated connection and application macros
- ECO mode for V/f, V2/f
- Integrated hibernation mode
- 60 A rated current (LO) output, 45 A rated current (HO) output, 40 A rated current at 480 VAC (LO) output, 52 A rated current at 480 VAC (HO) output
- 40 hp (LO), 30 hp (HO) rated power
Specifications
GTIN: 00887621902001
UNSPSC: 39121007
Country of Origin: China
| Type | 3-Phase Compact Low Voltage |
|---|---|
| Voltage Rating | 380 to 480 V AC |
| Width | 24 in |
| Depth | 209 mm |
| Enclosure Type | IP20/Open |
| Height | 264.5 mm |
| Mounting Type | Wall |
| Series | V20 |
| Amperage Rating | 52 A |
| Horsepower | 30 hp |
| BABA Compliant | No |
| Sold as | EACH |
