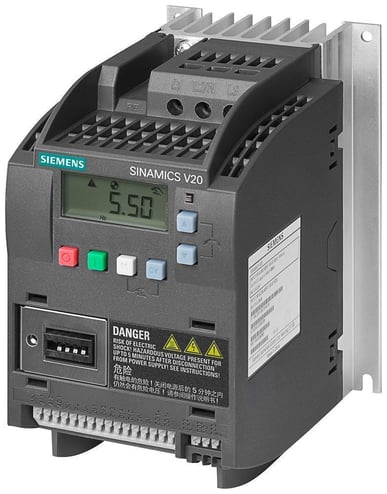

Siemens 6SL32105BE137UV0 SINAMICS V20 Compact AC Variable Frequency Drive, 380 to 480 VAC, 1.3 A, 12 hp, 150 mm W x 146 mm D


Description

Siemens AC Variable Frequency Drive, Compact, Series: SINAMICS V20, 380 to 480 VAC, 1.3 A, 1/2 hp, 150 mm Width, 146 mm Depth, 90 mm Height, IP20/Open, BOP

The compact SINAMICS V20 is the frequency converter for simple motion sequences. It is characterized by its short commissioning times, easy handling, and energy saving functions. The converter with its nine sizes covers the power range from 0.12 kW to 30 kW.

Features

  • Simple installation - push-through and wall mounting - side-by-side possible for both versions
  • Simple commissioning, diagnostics, and service via mobile and local operator panels, as well as a multitude of options
  • Easy handling - parameter readout and cloning without power supply
  • Greater voltage range, advanced cooling, and coated electronics boards add to the robustness of the converter in tough environmental conditions
  • Stable operation under difficult line supply conditions
  • Operating and ambient temperature from -10 to 60 deg C
  • ECO mode for U/f, U2/f, hibernation mode in idle state
  • Integrated energy and water flow monitoring
  • High overload capacity (HO) and low overload capacity (LO) for frame size FSE
  • Without filter
  • 1.3 A rated current (HO) output, 1.3 A rated current (LO) output and 1.3 A rated current (HO) at 480 V, 1.3 A rated current (LO) at 480 V
  • 1/2 hp rated power (HO) output, 1/2 hp rated power (LO) output

Specifications

GTIN: 00887621056179

UNSPSC: 39121007

Country of Origin: China

Type
Compact
Voltage Rating
380 to 480 V AC
Width
150 mm
Depth
146 mm
Enclosure Type
IP20/Open
Height
90 mm
Series
SINAMICS V20
Amperage Rating
1.3 A
Horsepower
1/2 hp
Display Type
BOP
BABA Compliant
No
Sold as
EACH
