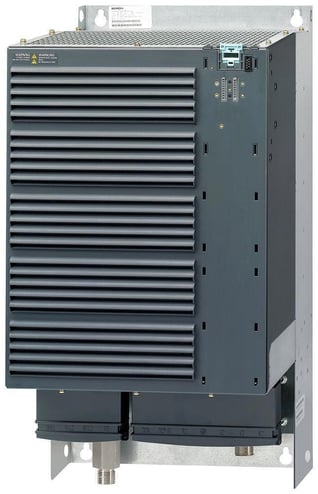

Siemens SINAMICS S120 6SL32101SE318AA0 PM340 3-Phase Internal Air Cooling Power Module, 380 to 480 VAC Input, 178 A Output, 90 kW


Description

Siemens SINAMICS S120 Power Module, 3-Phase Internal Air Cooling, Series: PM340, 380 to 480 VAC Input, 178 A Output, 90 kW, 60 dB Sound Pressure, IP20, 47 to 63 Hz, 0.95 to 0.65 Power Factor, FSF Frame, 100 hp, 32 to 104 deg F, 934 mm H x 350 mm W x 315.5 mm D

PM340 power modules without integrated line filter can be connected to grounded TN/TT and non-grounded IT systems. PM340 power modules with integrated line filter are suitable only for connection to TN systems with grounded star point. The integrated braking unit (braking chopper) is rated with the capability to continuously utilize the external braking resistor. The temperature of the external braking resistor must be monitored to provide protection against thermal overloading.

Features

  • Line supply connection
  • PM-IF interface for connection of the PM340 and CU305 control unit
  • The PM340 power module also supplies power to the CU305 control unit by means of an integrated power supply
  • Terminals DCP/R1 and R2 for connection of an external braking resistor
  • Motor connection made with screw type terminals or screw studs
  • Control circuit for the safe brake relay for controlling a holding brake
  • 2 PE/protective conductor connections

Specifications

GTIN: 00887621292355

UNSPSC: 39121007

Country of Origin: Germany

Width
6 in
Temperature Rating
32 to 104 deg F
BABA Compliant
No
Type
3-Phase Internal Air Cooling
Input Voltage
380 to 480 VAC
Specifications
60 dB Sound Pressure, IP20, 47 to 63 Hz, 0.95 to 0.65 Power Factor, FSF Frame, 100 hp
Weight
1710 lbs
Power Consumption
90 kW
Dimensions
934 mm H x 350 mm W x 315.5 mm D
Series
PM340
Output Current
178 A
Sold as
EACH
