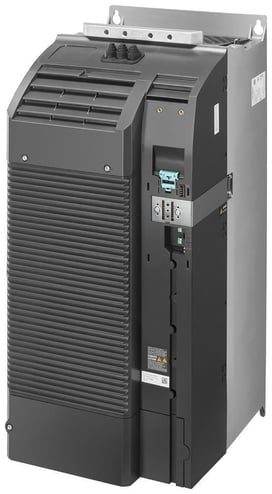

Siemens 6SL32101PE325UL0 SINAMICS G120 3-Phase Power Module With Built-In Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 218 A Input, 410 A Output
Siemens 6SL32101PE325UL0 SINAMICS G120 3-Phase Power Module With Built-In Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 218 A Input, 410 A Output
MPN 6SL32101PE325UL0
ASPN SIE6SL32101PE325UL0
UPC 804766236907
Features
- Without integrated line filter
- Without control unit and panel
- 242 A low overload, 218 A high overload input current
- 250 A low overload, 205 a high overload, 410 A maximum output current
- -20 to 40 deg C low overload, -20 to 50 deg C high overload ambient
Specifications
GTIN: 00804766236907
UNSPSC: 39121007
Country of Origin: Germany
| Type | 3-Phase |
|---|---|
| Output Voltage | 400 VAC |
| Width | 3.3 in |
| Specifications | 68 dB Sound Pressure, IP20/Open Enclosure, 47 to 63 Hz |
| Input Voltage | 380 to 480 VAC |
| Dimensions | 708 mm H x 305 mm W x 357 mm D |
| Input Current | 218 A |
| Series | SINAMICS G120 |
| Output Current | 410 A |
| Temperature Rating | -20 to 50 deg C |
| Power Dissipation | 2.81 kW |
| BABA Compliant | No |
| Sold as | EACH |
