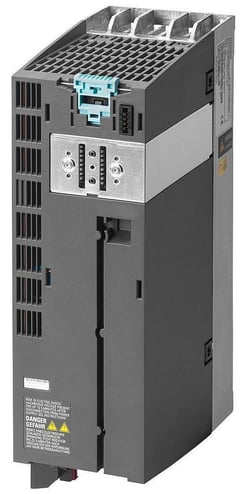

Siemens SINAMICS G120P 6SL3210-1NE15-8UG1 PM230 3-Phase Internal Air Cooling Power Module, 380 to 480 VAC Input, 400 VAC Output, 4.26.1 A Input, 4.15.9 A Output, 1.52.2 kW

Siemens SINAMICS G120P Power Module, 3-Phase Internal Air Cooling, Series: PM230, 380 to 480 VAC Input, 400 VAC Output, 4.2/6.1 A Input Current, 4.1/5.9 A Output Current, 1.5/2.2 kW Power Consumption, Specifications: 50 dB Sound Pressure, 96% Efficiency, IP20/Open Enclosure, 47 to 63 Hz, 0.9 Power Factor, FSA Frame, 2/3 hp, 0 to 40 deg C, 196 mm H x 73 mm W x 165 mm D Dimensions

PM230 power modules are designed for applications involving pumps, fans and compressors with a quadratic characteristic. They do not have an integrated braking chopper (single-quadrant applications). The PM230 power module only generates low line harmonics and apparent power losses. In addition to the energy-related advantages, environmental stressing is also reduced. Line harmonics are reduced significantly. The limit values of EN 61000-3-12 are complied with for RSCE > 250. RSCE is the short-circuit power ratio Ssc line/Inverter according to EN 61000-3-12 and is identical to RSC acc. To IEC 60146-1-1 in the case of three-phase devices. Additional component such as line reactors are not required and it is not permissible to use them. As a consequence, low envelope dimensions are obtained for space saving designs. The active power component is very high, i.e. The device consume less current from the supply for the same drive power. As a consequence, smaller supply cable can be used. Frame sizes FSA to FSF of the PM230 power module in degree of protection IP55 are available with integrated line filter class a for installations acc. To Category C2 and in accordance with EN 61800-3. The PM230 power modules with integrated filter class B that are available as an alternative also comply with the conducted interference requirements for Category C1 in accordance with EN 61800-3. Frame sizes FSA to FSF of the PM230 power module in degree of protection IP20 are available with integrated line filter class a for Category C2 installations in accordance with EN 61800-3, or without an integrated line filter. The frame sizes FSA to FSC of the PM230 power module with degree of protection IP20, Push through version, are available with integrated line filter class a for installations acc. To Category C2 as per EN 61800-3 or without an integrated line filter. PM230 power modules with integrated line filter class A or class B meet the EMC limit values up to a maximum cable length of 25 m (82 ft) with shielded cable between inverter and motor. Unfiltered PM230 power modules with degree of protection IP20 with external line filter class B comply with EMC Category C1 with a cable length of 50 m (164 ft) between the inverter and the motor. EMC Category C2 is complied with through the use of an additional output reactor for a cable length of 150 m (492 ft) (see output-side power components). The line system configuration that are supported are symmetrical systems with grounded neutral point. PM230 power modules in frame sizes FSA to FSC can be combine with the CU240E-2 control unit 1). This enables the implementation of the STO safety function according to SIL 2. PM230 power modules, frame sizes FSD to FSF, do not support control units with safety Integrated. Safety functions can be implemented here by means of external switching devices.
