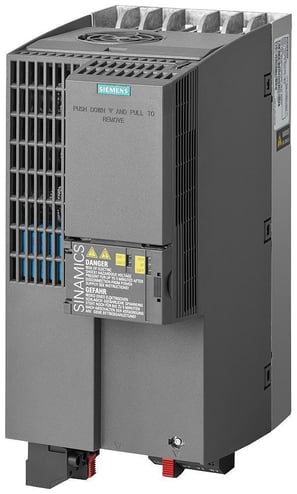

Siemens 6SL32101KE232UF1 SINAMICS G120C Compact AC Variable Frequency Drive, 380 to 480 VAC, 25 A, 15 hp, 140 mm W x 203 mm D
Siemens 6SL32101KE232UF1 SINAMICS G120C Compact AC Variable Frequency Drive, 380 to 480 VAC, 25 A, 15 hp, 140 mm W x 203 mm D
MPN 6SL32101KE232UF1
ASPN SIE6SL32101KE232UF1
UPC 887621030643
Description
Features
- High torques at low frequency setpoints are possible thanks to energy-efficient, sensorless vector control
- Due to the certified safe torque off safety function, which is integrated as standard, additional external components can be omitted
- All standard bus systems such as PROFINET, EtherNet/IP, PROFIBUS and USS/ Modbus RTU are supported
- Intuitive series commissioning, cloning function using a SINAMICS G120 smart access Module, BOP-2, IOP-2 or SD card
- Simple and fast software parameter assignment
- Full integration of the drives into the TIA portal system diagnostics and the use of the TIA portal library concept guarantee simple reusability of the converters, including their parameters and hardware components
- Integrated input reactor and EMC filter
- All frame sizes in side-by-side design without power reduction or current derating
- Without filter
- 40.6 A rated current (LO) input, 36.4 A rated current (HO) input, 31 A rated current (LO) output, 25 A rated current (HO) output, 32 A current rated (IN) output, 50 A max output current
- 20 hp rated power NEC at 480 V (LO) output, 15 hp rated power NEC at 480 V (HO) output
Specifications
GTIN: 00887621030643
UNSPSC: 39121007
Country of Origin: United Kingdom of Great Britain and Northern Ireland (the)
| Type | Compact |
|---|---|
| Voltage Rating | 380 to 480 V AC |
| Width | 140 mm |
| Depth | 203 mm |
| Enclosure Type | IP20/Open |
| Height | 295 mm |
| Series | SINAMICS G120C |
| Amperage Rating | 25 A |
| Horsepower | 15 hp |
| BABA Compliant | No |
| Sold as | EACH |
