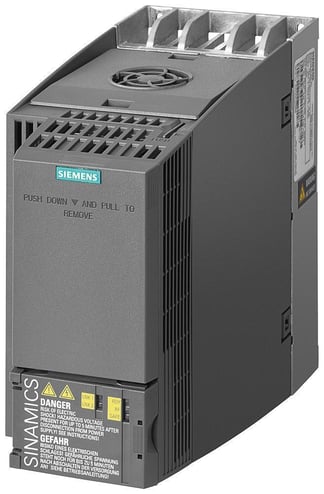

Siemens SINAMICS 6SL32101KE217AC1 G120C 3-Phase Compact Low Voltage Converter With Integrated Class A Filter, CANopen Interface, 380 to 480 VAC, 12.5 A, 7-12 hp, 100 mm W x 203 mm D
Siemens SINAMICS 6SL32101KE217AC1 G120C 3-Phase Compact Low Voltage Converter With Integrated Class A Filter, CANopen Interface, 380 to 480 VAC, 12.5 A, 7-12 hp, 100 mm W x 203 mm D
MPN 6SL32101KE217AC1
ASPN SIE6SL32101KE217AC1
UPC 887621207434
Description
Features
- High power density
- Simple and fast commissioning
- USB port
- Plug-in terminal strips
- Standard commissioning with SD card
- Optimum interaction with simotion and SIMATIC
- 21.5 A rated current (LO) input, 18.2 A rated current (HO) input, 16.5 A rated current (LO) output, 12.5 A rated current (HO) output, 17 A current rated (IN) output, 25 A max output current
- 10 hp rated power NEC at 480 VAC (LO) output, 7-1/2 hp rated power NEC at 480 VAC (HO) output
Specifications
GTIN: 00887621207434
UNSPSC: 39121007
Country of Origin: United Kingdom of Great Britain and Northern Ireland (the)
| Type | 3-Phase Compact Low Voltage |
|---|---|
| Voltage Rating | 380 to 480 V AC |
| Width | 13 in |
| Depth | 203 mm |
| Enclosure Type | IP20/Open |
| Height | 196 mm |
| Mounting Type | Control Cabinet Panel |
| Series | G120C |
| Amperage Rating | 12.5 A |
| Horsepower | 7-1/2 hp |
| BABA Compliant | No |
| Sold as | EACH |
