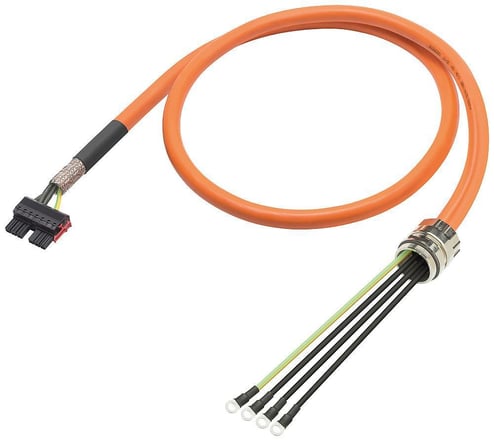

Siemens MOTION-CONNECT 800 PLUS 6FX80225CP471AF0 Pre-Assembled Power Cable, 6001000 VAC, (4) 10 sq-mm, 5 m L

The Siemens MOTION-CONNECT 800 PLUS 6FX80225CP471AF0 pre-assembled power cable is available through Agilix Solutions as an authorized distributor. This high-quality power cable, rated for 600/1000 VAC, features four 10 sq-mm conductors with a 5 m length and an outer diameter of 18.2 mm. It includes an M40 bolting open-end lead end style, CFC insulation, and a durable PUR jacket in orange, suitable for temperatures ranging from -58 to 176 degrees Fahrenheit. Installation is versatile with pre-assembly available at one or both ends. For applications where connector assembly might obstruct installation, crimped contacts with separate connectors can be supplied for user assembly. These cables excel in robust performance, ensuring reliable connection in both synchronous and asynchronous motor applications. They are particularly beneficial for use in cable carriers and support high mechanical loads, verified for movement over distances up to 50 meters. This product is suggested for use with SINAMICS S120 C/D type booksize motor modules and excludes a brake core. It complies with IP67 standards, signifying its suitability for damp environments, and it falls under the UNSPSC code 26121629. The Siemens MOTION-CONNECT 800 PLUS cables are ideal for demanding environments such as industrial and utility applications, providing a proven and consistent performance.

The synchronous and asynchronous motors are connected to the motor modules or power modules by means of MOTION-CONNECT® power cables. The pre-assembled MOTION-CONNECT® power cable are of high quality and offer safety with problem-free functioning. Depending on the design, the MOTION-CONNECT® power cable are either pre-assembled at one end or at both ends. If pre-assembled power cable are to be installed in a cable carrier in such a way that the connector would inhibit assembly, pre-assembled cable without assembled connector can also be supplied. In this case, the contacts of the cable are crimped and the connector is supplied separately. After installing the cables, the customer assembles the connector.
