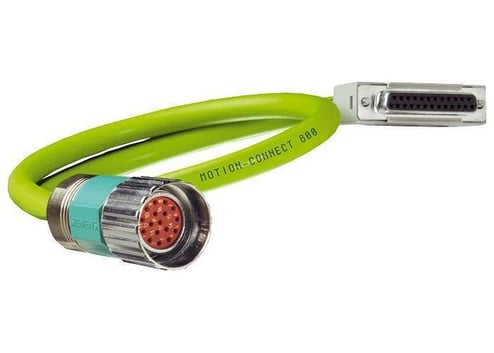

Siemens MOTION-CONNECT 800 PLUS 6FX80022BB011AD0 Pre-Assembled Basic Signal Cable, 30 VAC, (8) 0.18 sq-mm, 3 m L


Description

Siemens MOTION-CONNECT 800 PLUS Basic Signal Cable, Pre-Assembled, 30 VAC, 8 Conductors, 0.18 sq-mm Conductor, 6.7 mm OD, 3 m Length, CFC Insulation, PUR Jacket, Green Jacket, -50 to 80 deg C

MOTION-CONNECT® cables and connections are the ideal solution for all those who wish to use high quality, system tested power and signal cables on their machine. Our solution is characterized by lots of highly convincing features, such as an EMC compatibility test of the complete system (controller, inverter, motor and cables), vibration resistance and all relevant functions. MOTION-CONNECT® cables provides state of the art cables and connections (DRIVE-CLiQ, SPEED-CONNECT) for your motion control systems.

Features

  • Superior quality and system responsibility

Specifications

GTIN: 00887621006976

UNSPSC: 26121604

Country of Origin: Slovakia

Type
Pre-Assembled
Outside Diameter
6.7 mm
Jacket Material
PUR
Insulation Material
CFC
Voltage Rating
30 V AC
Weight
2.8 lbs
Conductor Size
0.18 sq-mm
Length
3 m
Jacket Color
Green
Number of Conductors
8
Temperature Rating
-50 to 80 deg C
BABA Compliant
No
Sold as
EACH
