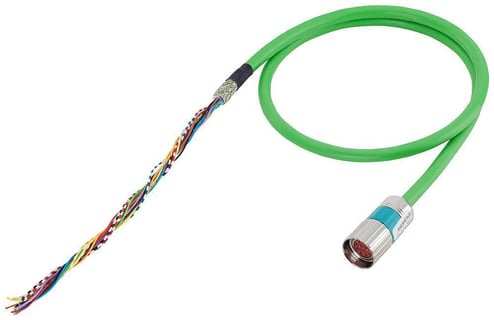

Siemens MOTION-CONNECT® 800 PLUS 6FX80022AH001FA0 Pre-Assembled Basic Signal Cable, 30 VAC, (12) 0.34, 0.5 sq-mm Bare Copper Conductor, 50 m L


Description

Siemens MOTION-CONNECT® 800 PLUS Basic Signal Cable, Pre-Assembled, 30 VAC, 12 Conductors, Bare Copper Conductor, 0.34 , 0.5 sq-mm Conductor, 9.3 mm OD, 50 m Length, M23 Full Threaded Connector x Open End Lead End Style, CFC Insulation, PUR Jacket, Green Jacket, -58 to 176 deg F

MOTION-CONNECT® cables and connections are the ideal solution for all those who wish to use high quality, system tested power and signal cables on their machine. Our solution is characterized by lots of highly convincing features, such as an EMC compatibility test of the complete system (controller, inverter, motor and cables), vibration resistance and all relevant functions. MOTION-CONNECT® cables provides state of the art cables and connections (DRIVE-CLiQ, SPEED-CONNECT) for your motion control systems.

Features

  • Superior quality and system responsibility

Specifications

GTIN: 00662643054705

UNSPSC: 26121604

Country of Origin: Slovakia

Type
Pre-Assembled
Outside Diameter
9.3 mm
Jacket Material
PUR
End Style
M23 Full Threaded Connector x Open End Lead
Insulation Material
CFC
Conductor Type
Bare Copper
Voltage Rating
30 V AC
Conductor Size
0.34 , 0.5 sq-mm
Length
50 m
Jacket Color
Green
Number of Conductors
12
Temperature Rating
-58 to 176 deg F
BABA Compliant
No
Sold as
EACH
