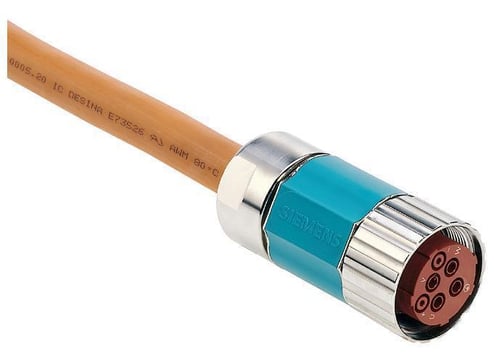

Siemens MOTION-CONNECT 700 6FX70025EB181AD0 Pre-Assembled Basic Power Cable, 6001000 VAC, (8) 2.5, 0.5 sq-mm, 3 m L


Description

Siemens MOTION-CONNECT 700 Basic Power Cable, Pre-Assembled, 600/1000 VAC, 8 Conductors, 2.5 , 0.5 sq-mm Conductor, 15.2 mm OD, 3 m Length, Size 1 Connector End Style, CFC Insulation, PUR Jacket, Orange Jacket, -58 to 176 deg F

MOTION-CONNECT® cables are suitable for use with many different types of machine tools and production machines. The power cables and signal cables can be ordered by the meter or preassembled.

Features

  • The ideal complement to linear motors and machines with high mechanical requirements
  • High quality, ensuring safety and perfect functioning
  • Cost savings with logistics, design, assembly and purchasing
  • Liability for defects by Siemens

Specifications

GTIN: 00662643411256

UNSPSC: 26121629

Country of Origin: Slovakia

Type
Pre-Assembled
Outside Diameter
15.2 mm
Jacket Material
PUR
End Style
Size 1 Connector
Insulation Material
CFC
Voltage Rating
600/1000 V AC
Weight
0.1 lbs
Conductor Size
2.5 , 0.5 sq-mm
Length
3 m
Jacket Color
Orange
Number of Conductors
8
Temperature Rating
-58 to 176 deg F
BABA Compliant
No
Sold as
EACH
