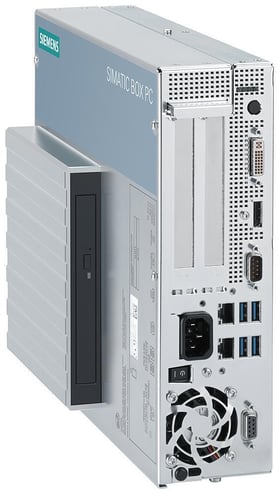

Siemens SIMATIC 6ES76504BB811HA3 IPC627D Industrial Box PC, Intel Xeon E3-1268Lv3 (4C8T, VT-d, AMT) Processor, 2.3 (3.3) GHz Speed, 8 GB DDR3 1600 DIMM Ram, 240 GB SSD, DVD +-RW Hard Disk


Description

Siemens SIMATIC Industrial Box PC, Series: IPC627D, Processor: Intel Xeon E3-1268Lv3 (4C/8T, VT-d, AMT), 2.3 (3.3) GHz, 8 MB Cache Memory, 8 GB DDR3 1600 DIMM Ram Memory, Hard Disk: 240 GB SSD, DVD +/-RW, Expansion/Connectivity: 4 x USB 3.0, 1 x Serial (COM1), 1 x PCI, 1 x PCIe (x16), Video Specification: 1 x DisplayPort, 1 x DVI-I (DVI/VGA Combined), Keyboard/Mouse Input Device, Operating System: Windows 7 Ultimate, 64-bit, Multi-Language (En, Ger, Fr, It, Sp, Ch), Networking Specification: 2 x 10/100/1000 Mbps RJ45 Ethernet, 110/230 VAC Supply, Portrait/Rack/Wall Mount, Environmental Conditions: 5 to 45 deg C Operating, -20 to 60 deg C Storage, 267 mm H x 312 mm W x 105 mm D

The SIMATIC PCS 7 BOX OS Client 627D based on the SIMATIC box PC of type SIMATIC IPC627D can be used within the SIMATIC PCS 7 process control system as OS Client or SIMATIC BATCH client. For these applications it is an alternative to clients based on a SIMATIC microbox PC or SIMATIC rack PC. With its compact and sturdy metal enclosure, the SIMATIC PCS 7 BOX OS Client 627D with a comparable interface configuration is slightly larger than a client on the basis of the SIMATIC microbox PC. In return, it is additionally equipped with a DVD drive and two free slots for expansion modules.

Features

  • Rugged metal enclosure with IP20 degree of protection with high electromagnetic compatibility
  • Powerful Intel graphics controller HD Graphics 4600 onboard integrated in the processor
  • Support of multi-monitor mode with two process monitors via onboard graphics
  • Alternative design version of panel front - SIMATIC PCS 7 BOX with fixed 22 in TFT display with touch screen, resolution 1920 x 1080
  • Flexible installation in various positions with mounting brackets or portrait installation kits
  • High shock/vibration resistance in all possible mounting positions
  • Maximum processor performance up to an ambient temperature of 55 deg C
  • Certifications for worldwide marketing
  • Fast restoration of the delivery state with supplied restore DVD

Specifications

GTIN: 00804766165160

UNSPSC: 43211515

Country of Origin: Germany

Expansion/Connectivity
4 x USB 3.0, 1 x Serial (COM1), 1 x PCI, 1 x PCIe (x16)
Cache Memory
8 MB
Processor
Intel Xeon E3-1268Lv3 (4C/8T, VT-d, AMT)
Ram Memory
8 GB DDR3 1600 DIMM
Speed
2.3 (3.3) GHz
Power Supply
110/230 V AC
Dimensions
267 mm H x 312 mm W x 105 mm D
Input Device
Keyboard/Mouse
Mounting Type
Portrait/Rack/Wall
Series
IPC627D
Environmental Conditions
5 to 45 deg C Operating, -20 to 60 deg C Storage
Operating System
Windows® 7 Ultimate, 64-bit, Multi-Language (En, Ger, Fr, It, Sp, Ch)
Hard Disk
240 GB SSD, DVD +/-RW
Video Specification
1 x DisplayPort, 1 x DVI-I (DVI/VGA Combined)
Networking Specification
2 x 10/100/1000 Mbps RJ45 Ethernet
BABA Compliant
No
Sold as
EACH
