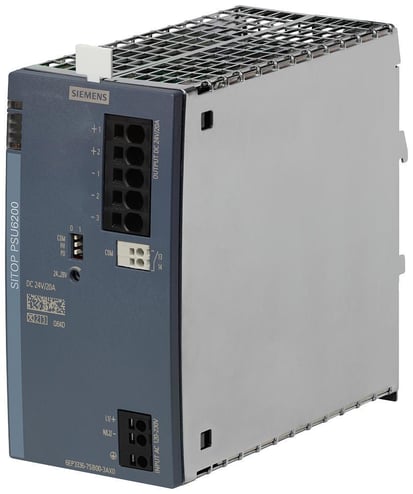

Siemens SITOP 6EP33367SB003AX0 Power Supply, 120 to 230 VAC Input, 24 VDC Output, 480 W Power Rating, 4.4 to 2.3 A Input/0 to 20 A Output


Description

Siemens SITOP Power Supply, Series: PSU6200, 120 to 230 VAC Input, 24 VDC Output, 480 W Power, 4.4 to 2.3 A Input/0 to 20 A Output, 50/60 Hz Frequency, 70 mm Width, 155 mm Depth, 135 mm Height

The 1-phase SITOP PSU6200 from the product line is a powerful, regulated standard power supply for automated machines and systems. In addition to a high efficiency, these low profile power supply units have an outstanding overload behavior.

Features

  • Wide-range input that allows it to be connected to almost any 1-phase line supply around the world or to a DC power source
  • The output voltage can be set in the range 12 to 15.5 V or 24 to 28 V
  • Brief overload capability of 150 % for 5 s/min (extra power)
  • Continuous overload capability of 120 % up to an ambient temperature of 45 deg C
  • Integrated signaling contact for "12 V OK" or "24 V OK"
  • Push-in connections facilitate fast wiring
  • Diagnostic monitor with utilization and service life display using LEDs
  • Diagnostics interface to connect to the automation system via only one digital PLC input
  • Ambient temperature -25 to 70 deg C
  • To increase the system availability, these reliable power supplies can be expanded using SITOP supplementary modules (redundancy module, selectivity module, buffer module), as well as SITOP DC-UPS modules

Specifications

GTIN: 00804766818073

UNSPSC: 39121004

Country of Origin: Austria

Output Voltage
24 V DC
Frequency Rating
50/60 Hz
Width
70 mm
Depth
155 mm
Input Voltage
120 to 230 V AC
Height
135 mm
Series
PSU6200
Amperage Rating
4.4 to 2.3 A Input/0 to 20 A Output
Power Rating
480 W
BABA Compliant
No
Sold as
EACH
