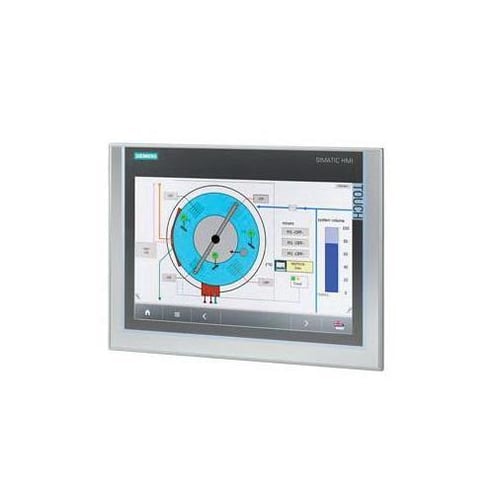

Siemens SIMATIC 6AV78820CB200BA0 IPC277E Industrial Nanopanel PC, Celeron N2930 (4C/4T) Processor, 4 GB DDR3L Ram, 80 GB SSD SATA Hard Disk, 12 in TFT Touch Display


Description

Siemens SIMATIC Industrial Nanopanel PC, Series: IPC277E, Processor: Celeron N2930 (4C/4T), 4 GB DDR3L Ram Memory, Hard Disk: 80 GB SSD SATA, Expansion/Connectivity: 1 x USB 3.0, 3 x USB 2.0 (7 in/9 in, 2 x USB 2.0), 1 x COM (1 x RS232/422/485), 12 in TFT Touch, Video Specification: 1 x DisplayPort, Keyboard/Mouse Input Device, Networking Specification: 2 x 10/100/1000 Mbps RJ45 Ethernet, 24 VDC Supply, Environmental Conditions: 0 to 50 deg C Ambient, 241 mm H x 330 mm W x 73 mm D

The SIMATIC IPC277E nanopanel PC is a flexible embedded industrial PC with rugged and durable displays. Technologically it is based on the IPC227E nanobox PC and thus offers maximum industrial functionality for flexible use even under harsh conditions, all without the need for maintenance. The panel PC is characterized by modern interfaces and a high degree of flexibility in the selection of the display. The latest Intel Dual-Core and Quad-Core processors ensure excellent performance here for visualization and control tasks.

Features

  • Without OS

Specifications

GTIN: 00804766238888

UNSPSC: 43211515

Country of Origin: United States of America (the)

Expansion/Connectivity
1 x USB 3.0, 3 x USB 2.0 (7 in/9 in, 2 x USB 2.0), 1 x COM (1 x RS232/422/485)
Processor
Celeron N2930 (4C/4T)
Ram Memory
4 GB DDR3L
Width
2 in
Power Supply
24 V DC
Dimensions
241 mm H x 330 mm W x 73 mm D
Input Device
Keyboard/Mouse
Series
IPC277E
Environmental Conditions
0 to 50 deg C Ambient
Display Type
12 in TFT Touch
Hard Disk
80 GB SSD SATA
Video Specification
1 x DisplayPort
Networking Specification
2 x 10/100/1000 Mbps RJ45 Ethernet
BABA Compliant
No
Sold as
EACH
