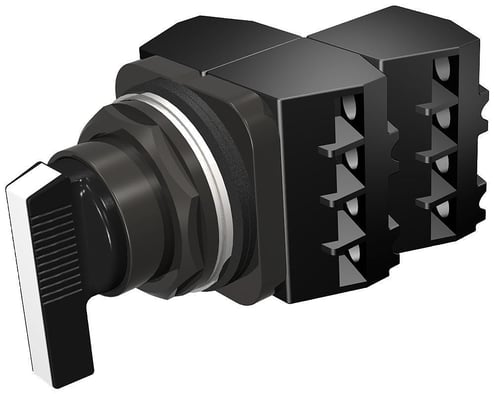

Siemens 52SW2GDBJ2K1 Class 52 Corrosion-Resistant Oil/Watertight Non-Illuminated Selector Switch, 30 mm, 1NC Contact, Silver Contact, Black/White
Siemens 52SW2GDBJ2K1 Class 52 Corrosion-Resistant Oil/Watertight Non-Illuminated Selector Switch, 30 mm, 1NC Contact, Silver Contact, Black/White
MPN 52SW2GDBJ2K1
ASPN SIE52SW2GDBJ2K1
UPC 40892617221
Description
Features
- Octagonal mounting nuts
- Heavy duty rated NEMA A600/P600 contacts
- Positively driven contacts
- Positive indexing selectors
- Bifurcated movable contacts
- Silver contacts carry heavy duty ratings
Specifications
GTIN: 00040892617221
UNSPSC: 39122214
Country of Origin: Mexico
| Type | Corrosion-Resistant Oil/Watertight |
|---|---|
| Cam Code | G |
| Terminal Type | Touch Safe Screw |
| Color | Black/White |
| Size | 30 mm |
| Contact Mode | Spring Return |
| Width | 1.7 in |
| Enclosure Type | NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66 |
| Number of Positions | 3 |
| Series | Class 52 |
| Actuator | Long Lever |
| Contact Configuration | 1NC |
| Environmental Conditions | 31 to 158 deg F Operating Temperature, 40 to 185 deg F Storage Temperature |
| Finish | BlackMax |
| Bezel/Housing | Metal |
| BABA Compliant | No |
| Sold as | EACH |
