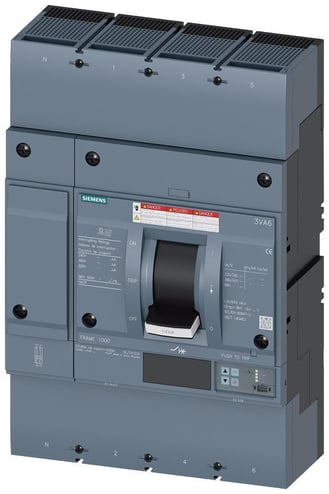

Siemens 3VA6610-7KT46-0AA0 Sentron UL Molded Case Circuit Breaker, 480, 600 V, 1000 A, 35kAIC at 600V, 100kAIC at 480V Interrupt, 4 Poles, Electronic Trip
Siemens 3VA6610-7KT46-0AA0 Sentron UL Molded Case Circuit Breaker, 480, 600 V, 1000 A, 35kAIC at 600V, 100kAIC at 480V Interrupt, 4 Poles, Electronic Trip
MPN 3VA6610-7KT46-0AA0
ASPN SIE3VA66107KT460AA0
UPC 195125192379
Description
Features
- 3VA66 frame with medium high (class C) breaking capacity
- Line and load lugs installed
Specifications
GTIN: 00195125192379
UNSPSC: 39121601
Country of Origin: Czechia
| Type | UL Molded Case |
|---|---|
| Trip Type | Electronic |
| Interrupt Rating | 35kAIC at 600V, 100kAIC at 480V |
| Number of Poles | 4 |
| Auxiliary Contact Rating | 0 |
| Frequency Rating | 50 to 60 Hz |
| Voltage Rating | 480/600 V |
| Enclosure Type | IP40 |
| Dimensions | 12.5 in H x 11.1 in W x 5.8 in D |
| Series | Sentron |
| Connection Type | Line/Load Lug |
| Amperage Rating | 1000 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA66 1000 A |
| Sold as | EACH |
