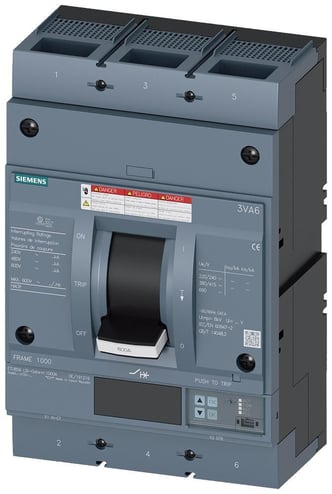

Siemens 3VA6580-5KT32-2AA0 3VA6 UL Molded Case Circuit Breaker, 480, 600 V, 800 A, 18 kAIC at 600 V, 35 kAIC at 480 V Interrupt, 3 Poles, Electronic Trip
Siemens 3VA6580-5KT32-2AA0 3VA6 UL Molded Case Circuit Breaker, 480, 600 V, 800 A, 18 kAIC at 600 V, 35 kAIC at 480 V Interrupt, 3 Poles, Electronic Trip
MPN 3VA6580-5KT32-2AA0
ASPN SIE3VA65805KT322AA0
UPC 804766981296
Description
Features
- 3VA65 frame with medium low (class M) breaking capacity
- Connection with lug terminal/nut keeper
Specifications
GTIN: 00804766981296
UNSPSC: 39121601
Country of Origin: Czechia
| Type | UL Molded Case |
|---|---|
| Trip Type | Electronic |
| Interrupt Rating | 18 kAIC at 600 V, 35 kAIC at 480 V |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 0 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 480/600 V |
| Enclosure Type | IP40 |
| Dimensions | 8.3 in W x 12.5 in H x 5.8 in D |
| Series | 3VA6 |
| Connection Type | Lug Terminal/Nut Keeper |
| Amperage Rating | 800 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA65 800 A |
| BABA Compliant | No |
| Sold as | EACH |
