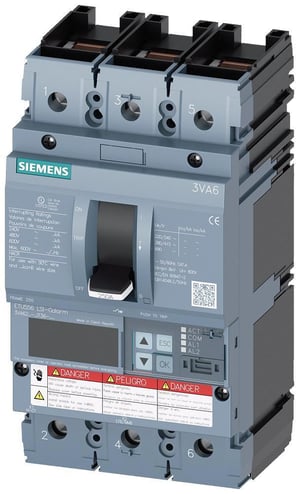

Siemens 3VA6225-8JT36-2AA0 Sentron UL Molded Case Circuit Breaker, 600, 480 V, 250 A, 50 kAIC at 600 V, 150 kAIC at 480 V Interrupt, 3 Poles, Electronic Trip
Siemens 3VA6225-8JT36-2AA0 Sentron UL Molded Case Circuit Breaker, 600, 480 V, 250 A, 50 kAIC at 600 V, 150 kAIC at 480 V Interrupt, 3 Poles, Electronic Trip
MPN 3VA6225-8JT36-2AA0
ASPN SIE3VA62258JT362AA0
UPC 195125276451
Description
Features
- 3VA62 frame with high (class L) breaking capacity
- Connection with aluminum lug
Specifications
GTIN: 00195125276451
UNSPSC: 39121601
Country of Origin: Czechia
| Type | UL Molded Case |
|---|---|
| Trip Type | Electronic |
| Interrupt Rating | 50 kAIC at 600 V, 150 kAIC at 480 V |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 0 |
| Frequency Rating | 50 to 60 Hz |
| Voltage Rating | 600/480 V |
| Enclosure Type | IP40 |
| Dimensions | 7.8 in H x 4.1 in W x 4.1 in D |
| Series | Sentron |
| Connection Type | Aluminum Lug |
| Amperage Rating | 250 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA62 |
| Sold as | EACH |
