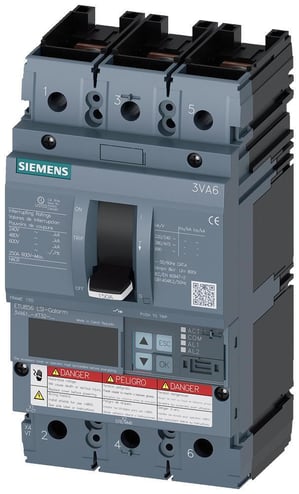

Siemens 3VA6160-0KT32-0AA0 SENTRON UL Molded Case Circuit Breaker, 480, 600 V, 60 A, 100 kAIC at 600 V, 200 KAIC at 480 V Interrupt, 3 Poles, Electronic Trip
Siemens 3VA6160-0KT32-0AA0 SENTRON UL Molded Case Circuit Breaker, 480, 600 V, 60 A, 100 kAIC at 600 V, 200 KAIC at 480 V Interrupt, 3 Poles, Electronic Trip
MPN 3VA6160-0KT32-0AA0
ASPN SIE3VA61600KT320AA0
UPC 195125076167
Description
Features
- 3VA61 frame with very high (class E) breaking capacity
- Connection with lug terminal/nut keeper
Specifications
GTIN: 00195125076167
UNSPSC: 39121601
Country of Origin: Czechia
| Type | UL Molded Case |
|---|---|
| Trip Type | Electronic |
| Interrupt Rating | 100 kAIC at 600 V, 200 KAIC at 480 V |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 0 |
| Frequency Rating | 50 to 60 Hz |
| Voltage Rating | 480/600 V |
| Enclosure Type | IP40 |
| Dimensions | 7.8 in H x 4.1 in W x 4.2 in D |
| Series | SENTRON |
| Connection Type | Lug Terminal/Nut Keeper |
| Amperage Rating | 60 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA61 150 A |
| Sold as | EACH |
