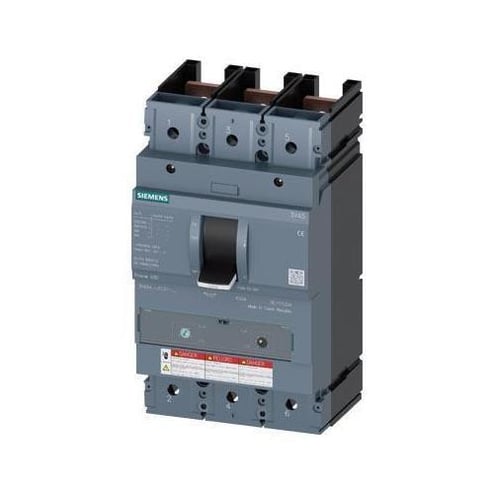

Sentron 3VA54457EC311AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC, 450 A, 35 kA at 600 V, 100 kA at 480 V, 200 kA at 240 V Interrupt, 3 Poles, TM230 Thermal Magnetic Trip
Sentron 3VA54457EC311AA0 Low Voltage Molded Case Circuit Breaker, 600 VAC, 450 A, 35 kA at 600 V, 100 kA at 480 V, 200 kA at 240 V Interrupt, 3 Poles, TM230 Thermal Magnetic Trip
MPN 3VA54457EC311AA0
ASPN SIE3VA54457EC311AA0
UPC 804766794353
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
- Without lug terminal
Specifications
GTIN: 00804766794353
UNSPSC: 39121616
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Trip Type | Thermal Magnetic |
| Interrupt Rating | 35 kA at 600 V, 100 kA at 480 V, 200 kA at 240 V |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 600 V AC |
| Weight | 0.6 lbs |
| Width | 1.9 in |
| Enclosure Type | IP40 |
| Dimensions | 5.4 in W x 4.3 in D x 9.8 in H |
| Trip Range | 2250 to 4500 A |
| Amperage Rating | 450 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA54 600 A |
| BABA Compliant | No |
| Sold as | EACH |
