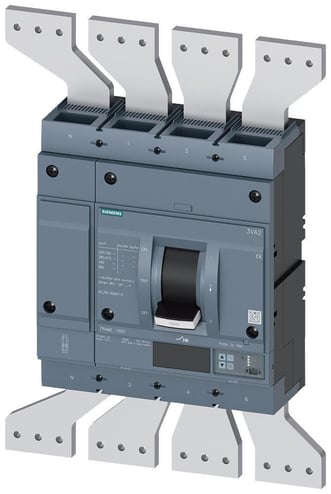

Sentron 3VA26126JP420AA0 Low Voltage Molded Case Circuit Breaker, 690 VAC, 1250 A, 19 kA at 690 V, 55 kA at 500 V, 70 kA at 440 V, 85 kA at 415 V, 110 kA at 240 V Interrupt, 4 Poles, ETU550 Electronic Trip
Sentron 3VA26126JP420AA0 Low Voltage Molded Case Circuit Breaker, 690 VAC, 1250 A, 19 kA at 690 V, 55 kA at 500 V, 70 kA at 440 V, 85 kA at 415 V, 110 kA at 240 V Interrupt, 4 Poles, ETU550 Electronic Trip
MPN 3VA2612-6JP42-0AA0
ASPN SIE3VA26126JP420AA0
UPC 195125112674
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00195125112674
UNSPSC: 39121616
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Trip Type | Electronic |
| Number of Poles | 4 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 690 V AC |
| Weight | 2.7 lbs |
| Enclosure Type | IP40 |
| Dimensions | 11 in W x 4.7 in D x 12.6 in H |
| Trip Range | 1875 to 12500 A |
| Connection Type | Lug Terminal/Nut Keeper |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA26 IEC 1250 A |
| BABA Compliant | No |
| Amperage Rating | 1250 A |
| Interrupt Rating | 19 kA at 690 V, 55 kA at 500 V, 70 kA at 440 V, 85 kA at 415 V, 110 kA at 240 V |
| Sold as | EACH |
