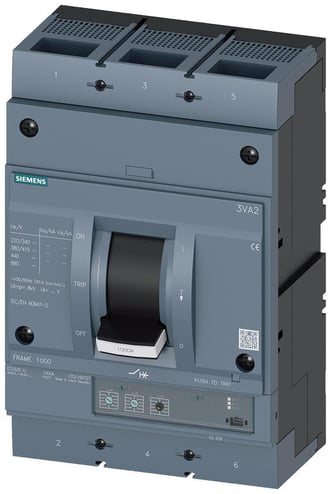

Sentron 3VA25805HL320AA0 Low Voltage Molded Case Circuit Breaker, 690 VAC, 800 A, 19 kA at 690 V, 36 kA at 500 V, 55 kA at 415440 V, 85 kA at 240 V Interrupt, 3 Poles, ETU320 Electronic Trip
Sentron 3VA25805HL320AA0 Low Voltage Molded Case Circuit Breaker, 690 VAC, 800 A, 19 kA at 690 V, 36 kA at 500 V, 55 kA at 415440 V, 85 kA at 240 V Interrupt, 3 Poles, ETU320 Electronic Trip
MPN 3VA2580-5HL32-0AA0
ASPN SIE3VA25805HL320AA0
UPC 195125112063
Description
Features
- Compliance with global standards and certifications
- Minimum space requirement thanks to the compact design
- Extensive selection of internal accessories (auxiliary and alarm switches, shunt trips), that are universal to the product line
- Power metering and communication capability with Modbus, PROFIBUS, PROFINET protocols
- Minimal effort for planning and configuration as a result of extensive CAD data
- Knowledge manager- technical information on a specific device can be accessed directly via QR code
- Without auxiliary releases and auxiliary alarm switches
Specifications
GTIN: 00195125112063
UNSPSC: 39121616
Country of Origin: Czechia
| Type | Low Voltage |
|---|---|
| Trip Type | Electronic |
| Interrupt Rating | 19 kA at 690 V, 36 kA at 500 V, 55 kA at 415/440 V, 85 kA at 240 V |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 690 V AC |
| Width | 3.4 in |
| Enclosure Type | IP40 |
| Dimensions | 8.3 in W x 4.7 in D x 12.6 in H |
| Trip Range | 1200 to 8000 A |
| Connection Type | Lug Terminal/Nut Keeper |
| Amperage Rating | 800 A |
| Temperature Rating | -25 to 70 deg C |
| Frame | 3VA25 IEC 1000 A |
| BABA Compliant | No |
| Sold as | EACH |
